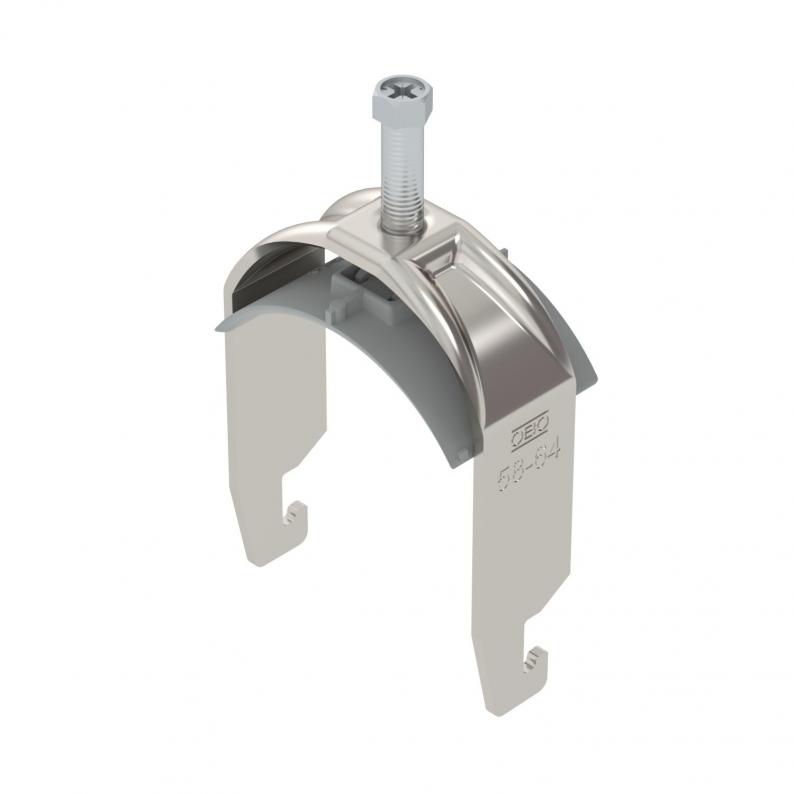

Clamp clip 2056 U-foot, 1-fold, plastic pressure sleeve, A2

Clamp clip 2056 U-foot, 1-fold, plastic pressure sleeve, A2

Type BS-U1-K-64 A2
|
Item no. 1186862
|
EAN 4012196851645
Show all variants
Item no. / Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.

Smallest selling unit: 15 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

Clamp clip with U-foot, plastic pressure sleeve made of polypropylene. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For slot width 18–22 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Slot width 18 mm
  • Slot width 22 mm
  • Clamp clip for C profile rail, slot width 18–22 mm
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

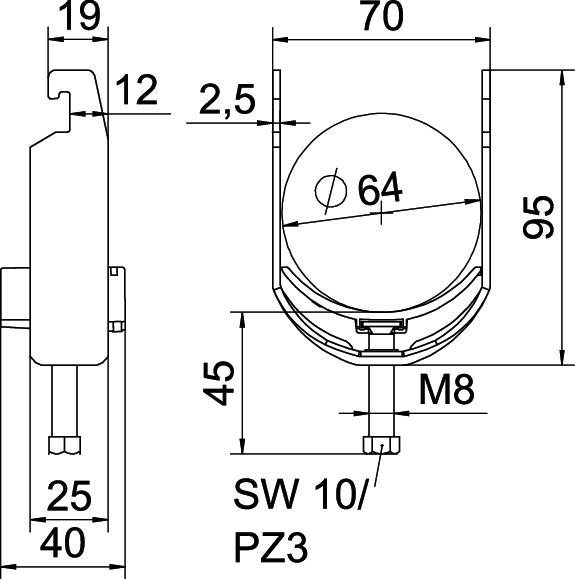

Dimensions

Length25 mm
Width70 mm
Height95 mm
Dimension L45 mm
Dimension A25 mm
Dimension B70 mm
Dimension H95 mm
Dimension t2,5 mm
Dimension C40 mm
Dimension G (mm)M8

Materials and Packaging

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes

Technical data

Plate thickness2,5 mm
For pipe diameter, min.58 mm
For pipe diameter, max.64 mm
Slot width10 mm
for rail with slot width (with interval), min.18 mm
for rail with slot width (with interval), max.22 mm
Halogen-freeyes
ThreadM8
With plastic troughyes
With metal troughno
Length of external dimensions40 mm
Number of cables/pipes1
Surface additionUntreated
Material additionRustproof steel
Max. Tightening torque5 Nm
Mounting typeProfile rail
Clamping range D, min.58 mm
Clamping range D, max.64 mm
Dimension58-64mm
SurfaceBright, treated
MaterialStainless steel 1.4301
With counter-troughno
Material of troughPlastic
Material quality of troughPolypropylene

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate0,6897 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Certificates (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
BS-U1-K-12 A2
Item no.
1186802
Max. Tightening torque
3
Clamping range D, min.
8
Clamping range D, max.
12
BS-U1-K-16 A2
Item no.
1186809
Max. Tightening torque
3
Clamping range D, min.
12
Clamping range D, max.
16
BS-U1-K-22 A2
Item no.
1186816
Max. Tightening torque
3
Clamping range D, min.
16
Clamping range D, max.
22
BS-U1-K-28 A2
Item no.
1186822
Max. Tightening torque
3
Clamping range D, min.
22
Clamping range D, max.
28
BS-U1-K-34 A2
Item no.
1186829
Max. Tightening torque
3
Clamping range D, min.
28
Clamping range D, max.
34
BS-U1-K-40 A2
Item no.
1186836
Max. Tightening torque
3
Clamping range D, min.
34
Clamping range D, max.
40
BS-U1-K-46 A2
Item no.
1186842
Max. Tightening torque
5
Clamping range D, min.
40
Clamping range D, max.
46
BS-U1-K-52 A2
Item no.
1186849
Max. Tightening torque
5
Clamping range D, min.
46
Clamping range D, max.
52
BS-U1-K-58 A2
Item no.
1186856
Max. Tightening torque
5
Clamping range D, min.
52
Clamping range D, max.
58
BS-U1-K-64 A2
Item no.
1186862
Max. Tightening torque
5
Clamping range D, min.
58
Clamping range D, max.
64
BS-U1-K-70 A2
Item no.
1186869
Max. Tightening torque
5
Clamping range D, min.
64
Clamping range D, max.
70
BS-U1-K-76 A2
Item no.
1186876
Max. Tightening torque
5
Clamping range D, min.
70
Clamping range D, max.
76
