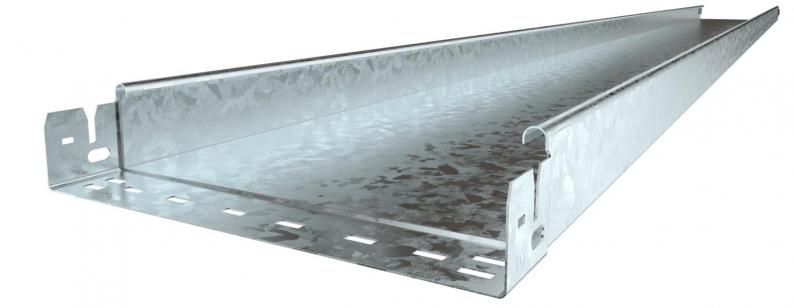

Cable tray MKS-Magic® 60, unperforated FT
Type MKSMU 610 FT | Item no. 6059248 | EAN 4012195831419
Item no. / Type
Length
Width
Height
Plate thickness
Maintain electrical functions
no
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
Smallest selling unit: 3 m
3m
Description
Unperforated cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.
Continuous equipotential bonding is guaranteed without additional components.
Technical data
Dimensions
| Length | 3050 mm |
|---|---|
| Width | 100 mm |
| Height | 60 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Integrated connector |
| Wide-span version | no |
| Usable cross-section | 58 cm² |
| Rustproof steel, pickled | no |
| Plate thickness | 1 mm |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Usable cross-section | 5800 mm² |
| With cover | no |
| Dimension | 60x100x3050 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Load test type according to IEC 61537 | Type II |
| Usable length | 3000 mm |
| Type of connector, cable support system | Click fastening |
| CO2 Footprint (GWP) Cradle-to-Gate | 4,6214 kg CO2e / 1 Meter |
Loads
| Support spacing 2.0 m | 1 kN/m |
|---|---|
| Support spacing 2.5 m | 0,5 kN/m |
| Support spacing 1.75 m | 1,25 kN/m |
| Support spacing 1.5 m | 1,5 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width
