Cable tray EKS 60 FT

Cable tray EKS 60 FT

Type EKS 650 FT | Item no. 6056989 | EAN 4012196333554

Show all variants
Item no. / Type
6056989 / EKS 650 FT
Maintain electrical functions
no
Surface
Hot-dip galvanised
Material
Steel

Smallest selling unit: 3 m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

EKS 60 = Extra-heavy cable tray system with 60 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Straight connectors should be ordered separately for all the versions.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

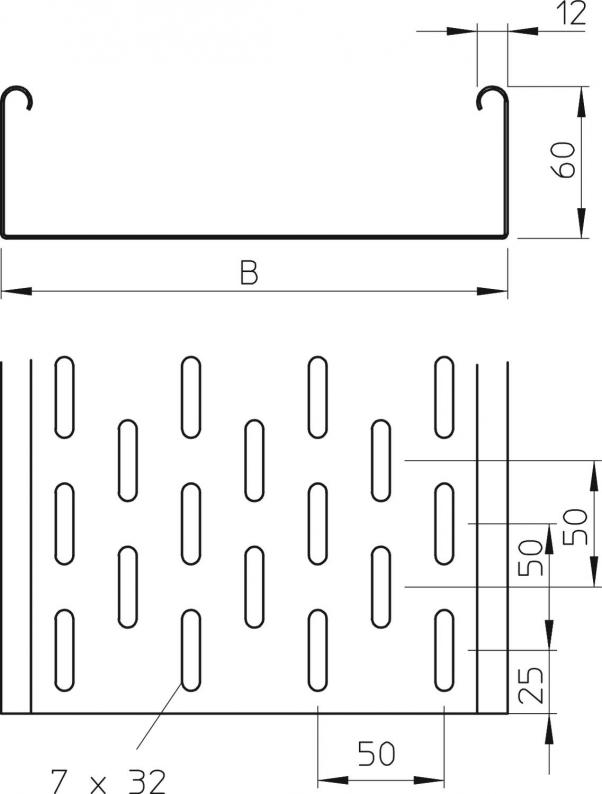

Dimensions

Length3000 mm
Width500 mm
Height60 mm
Dimension B500 mm

Technical data

Maintain electrical functionsno
Side perforationyes
Connector versionWithout connectors
Wide-span versionno
Usable cross-section298 cm²
Rustproof steel, pickledno
Plate thickness2 mm
Mounting perforation in baseyes
NATO hole patternno
Usable cross-section29800 mm²
With coverno
Dimension60 x 500
Dimension60x500x3000
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Load test type according to IEC 61537Type II
Type of connector, cable support systemScrewed
CO2 Footprint (GWP) Cradle-to-Gate23,7839 kg CO2e / 1 Meter

Loads

Support spacing 2.0 m1,35 kN/m
Support spacing 2.5 m1,15 kN/m
Support spacing 3.0 m0,9 kN/m
Support spacing 1.5 m2,1 kN/m
Load diagram, cable tray, type EKS 60

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (5)
Instructions and Aid (4)
Product images (3)
3D data downloads (1)
Tender specifications (2)

Accessories

System accessories

Item no. 6067603

Straight connector FT
Type
RLVK 60 FT

Smallest selling unit: 10 piece

Item no. 6036140

45° bend 60 FT
Type
RB 45 650 FT

Smallest selling unit: 1 piece

Item no. 6062321

Barrier strip 45 DD
Type
TSG 45 DD

Smallest selling unit: 3 m

Variants

EKS 650 FT
Item no.
6056989
Length
3000
Width
500
Maintain electrical functions
no
Plate thickness
2
Surface
Hot-dip galvanised
Material
Steel
