Cable ladder with trapezoidal rungs, standard FT
Type SL 62 400 FT | Item no. 7097441 | EAN 4012196980482
Item no. / Type
Length
Width
Rail thickness
Maintain electrical functions
no
Smallest selling unit: 3 m
3m
Description

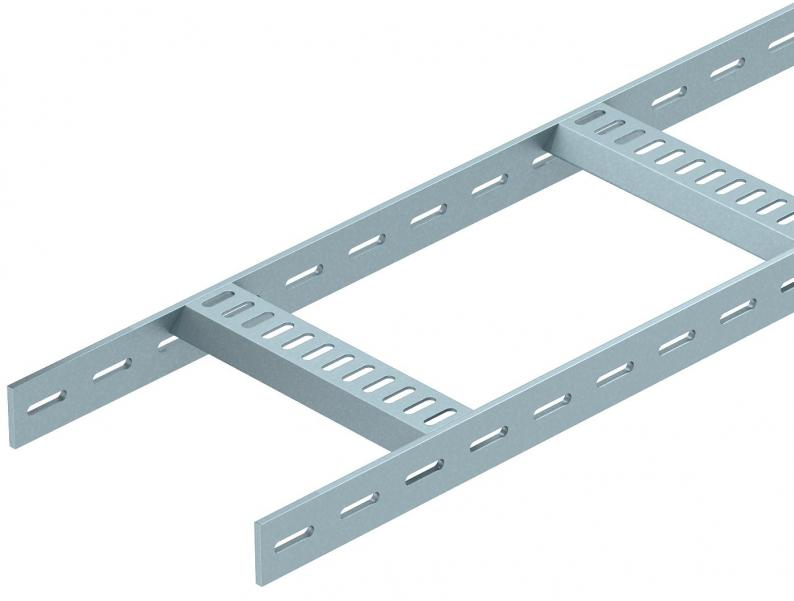

Shipbuilding cable ladder with perforated side rail of side height 40 mm with welded, perforated trapezoidal rungs which open in a downwards direction. Load tested according to IEC in conjunction with connector, type SLV.
The shipbuilding cable ladder, including fittings, is also available in stainless steel on request. Powder coating according to RAL colours possible.
Technical data

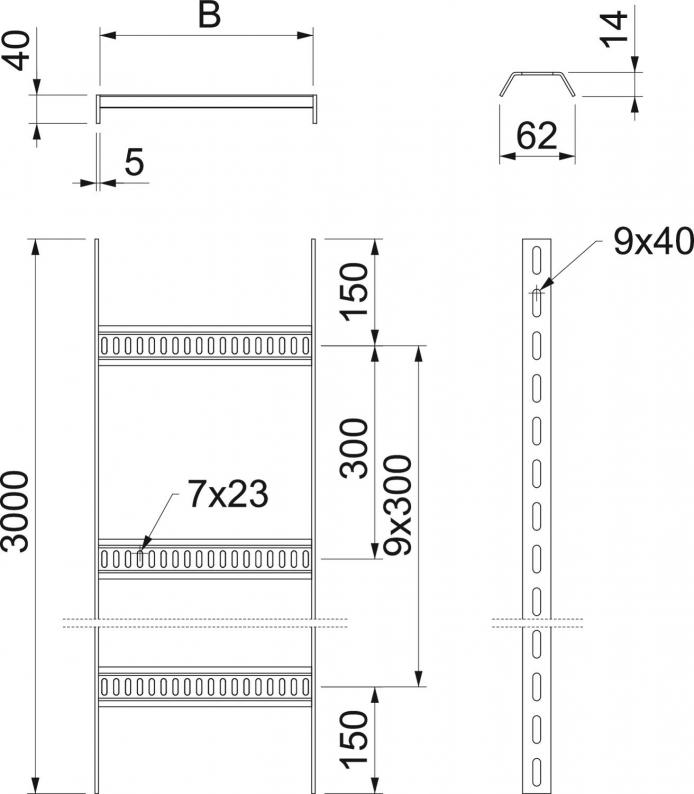

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 400 mm |
| Height | 40 mm |
| Dimension B | 410 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | yes |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Rung distance | 300 mm |
| Version of the rungs | Profile perforated |
| Side rail version | Flat profile |
| Fastening of rung | Welded |
| Rail thickness | 5 mm |
| Dimension | 40x410x3000 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 10,1963 kg CO2e / 1 Meter |
Loads
| Support spacing 2.0 m | 2 kN/m |
|---|---|
| Support spacing 2.5 m | 1 kN/m |
| Support spacing 3.0 m | 0,6 kN/m |
| Support spacing 1.5 m | 3 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width
Load scheme during testing
