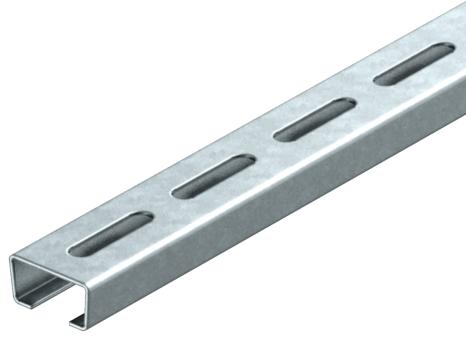

Anchor rail AML3518, slot width 16.5 mm, FT, perforated

Anchor rail AML3518, slot width 16.5 mm, FT, perforated

Type AML3518P2000FT
|
Item no. 1119656
|
EAN 4012195047599
Show all variants
Item no. / Type
1119656 / AML3518P2000FT
Surface
Hot-dip galvanised
Material
Steel

Smallest selling unit: 2 m

m

Description

Central C profile rail for cable routing, in conjunction with clamp clips with a hammerhead foot. Can also be used as suspension construction for cable support systems.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 16.5 mm for C profile
  • Clamp clip for C profile rail, slot width 16–17 mm
  • Function maintenance class E30
  • Function maintenance class E90
  • CO₂ footprint (PCF)

Technical data

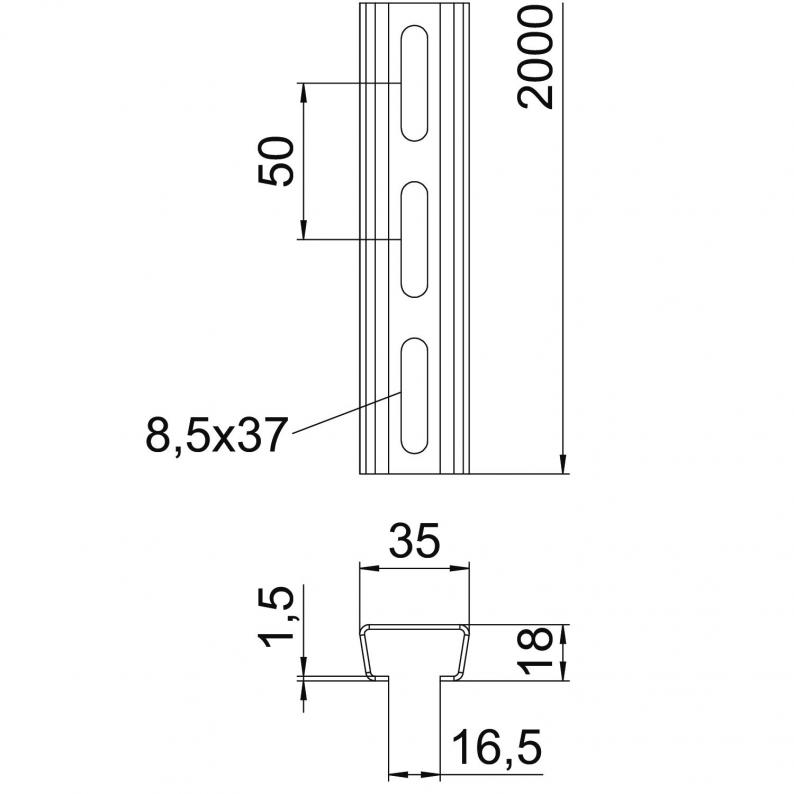

Dimensions

Length2000 mm
Width35 mm
Height18 mm
Dimension L2000 mm

Technical data

Maintain electrical functionsyes
Slot width16,5 mm
Material thickness1,5 mm
Static value A1,01 cm²
Static value ly0,44 cm⁴
Static value lz1,84 cm⁴
Static value Wy0,42 cm³
Static value Wz1,05 cm³
Profile shapeC profile
Type of perforationPerforated back
Drill hole spacing, centre50 mm
With perforationyes
Breakableno
With toothingno
Bundle20 m
Version forSingle profile
Dimension2000x35x18
SurfaceHot-dip galvanised
MaterialSteel

Environmental Data

1,9412 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate1,9412 kg CO2e / 1 Meter

Accessories

Mounting accessories

Item no. 1148060

Hammer-head bolt ZL
Type
ACMHB M8x30 ZL

Smallest selling unit: 50 piece

piece

Type
2056 22 FT

Smallest selling unit: 100 piece

piece

Type
2056 28 FT

Smallest selling unit: 100 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

AML3518P2000FT
Item no.
1119656
Length
2000
Width
35
Height
18
Material thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
