WKL 200 FT wide span cable ladder

WKL 200 FT wide span cable ladder

Type WKL 2030 FT | Item no. 6232104 | EAN 4012196614851

Show all variants
Item no. / Type
6232104 / WKL 2030 FT
Maintain electrical functions
no

Smallest selling unit: 6 m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

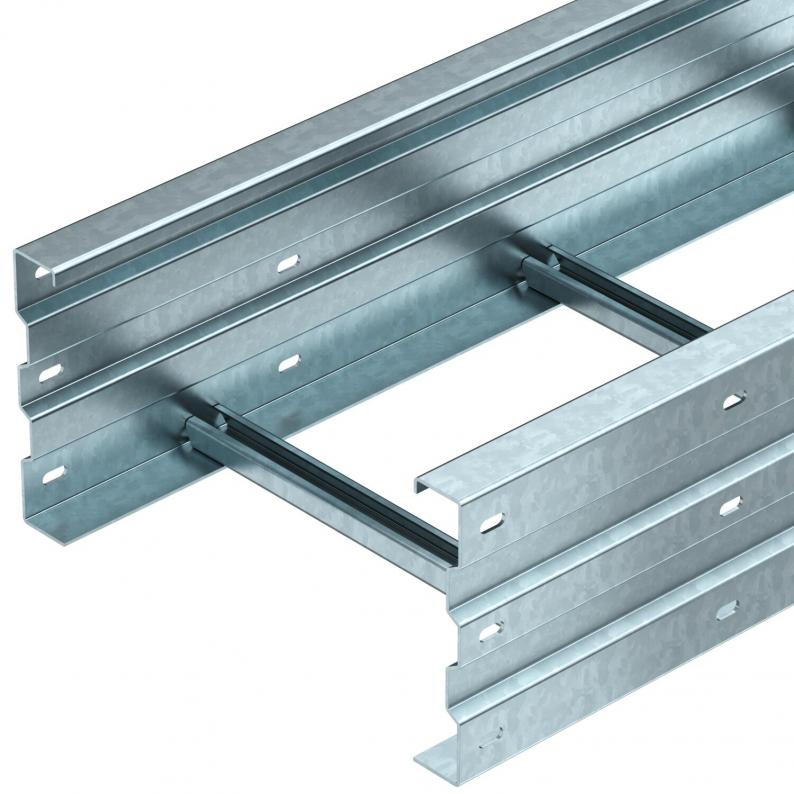

Wide span cable ladder with 200 mm side height.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Straight connectors of type WRVL 200 should be ordered separately and in the appropriate quantity.

  • Magnetic shield insulation
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Wide span cable ladder, side height 200 mm
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

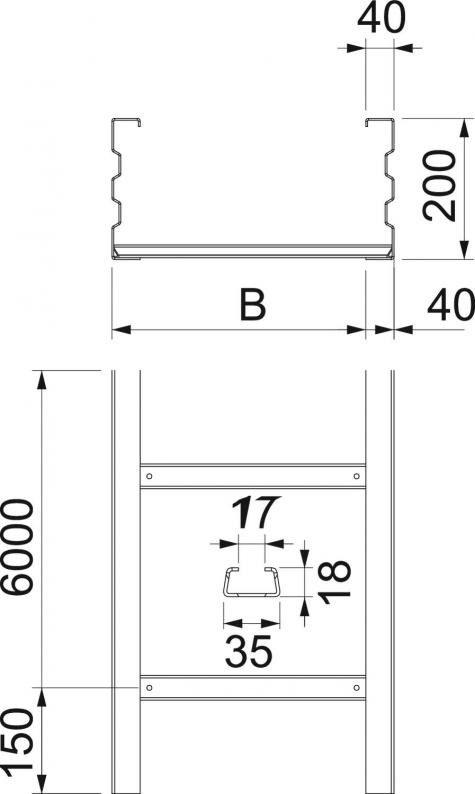

Dimensions

Length6000 mm
Width300 mm
Height200 mm
Dimension L6000 mm
Dimension B300 mm
Rung slot dimension17,00

Technical data

Maintain electrical functionsno
Side perforationyes
Wide-span versionyes
Usable cross-section524 cm²
Rustproof steel, pickledno
Usable cross-section52400 mm²
Version of the rungsProfile unperforated
Dimension200x300
Rail thickness2,5 mm
Dimension200x300x6000
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
CO2 Footprint (GWP) Cradle-to-Gate27,6248 kg CO2e / 1 Meter

Loads

Support spacing 6.0 m3 kN/m
Support spacing 8.0 m2 kN/m
Support spacing 7.0 m2,5 kN/m
Support spacing 9.0 m1,4 kN/m
Support spacing 10.0 m1 kN/m
Load diagram, wide span cable ladder, type WKL 200

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width

Downloads

0 selected

Data sheet (1)
Declarations (5)
Instructions and Aid (2)
Product images (3)
3D data downloads (2)
Tender specifications (2)

Accessories

Mounting accessories
Type
KS KL A2

Smallest selling unit: 30 piece

Variants

WKL 2030 FT
Item no.
6232104
Length
6000
Width
300
Maintain electrical functions
no
Rail thickness
2,5
