Wide span cable tray WKSG 160 FT

Wide span cable tray WKSG 160 FT

Type WKSG 163 FT | Item no. 6098554 | EAN 4012196766390

Show all variants
Item no. / Type
6098554 / WKSG 163 FT
Maintain electrical functions
no

Smallest selling unit: 6 m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

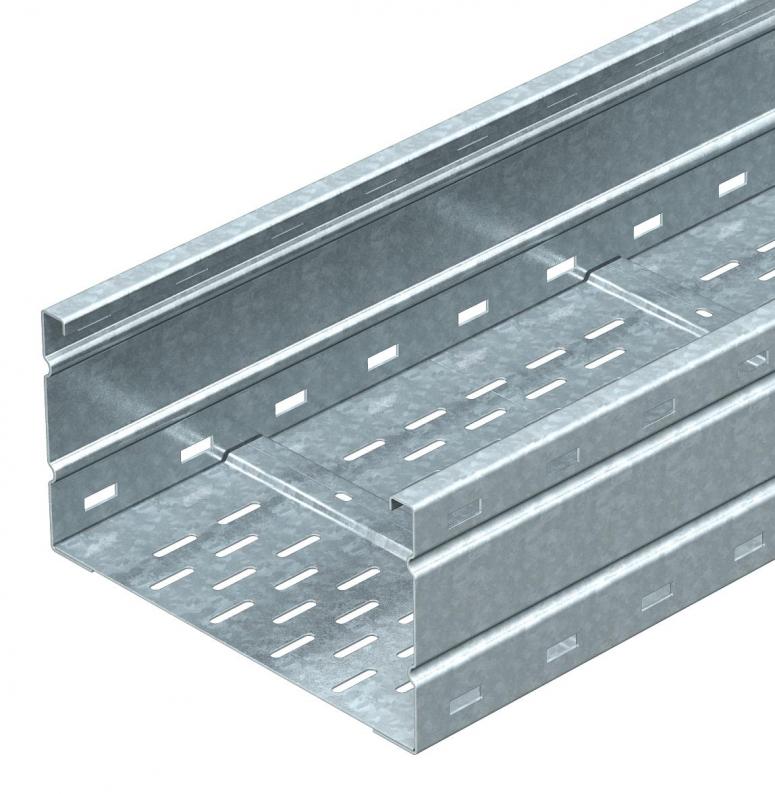

Wide span cable tray system, perforated, with a side height of 160 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Straight connectors of type WRV 160 should be ordered separately and in the appropriate quantity.

  • Magnetic shield insulation
  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Wide span cable tray, side height, 160 mm
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length6000 mm
Width300 mm
Height160 mm
Dimension L6000 mm
Dimension B300 mm

Technical data

Maintain electrical functionsno
Side perforationyes
Connector versionWithout connectors
Wide-span versionyes
Usable cross-section455 cm²
Rustproof steel, pickledno
Plate thickness2 mm
Mounting perforation in baseyes
Usable cross-section45500 mm²
Dimension300x6000
Dimension160x300x6000
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Magnetic shield insulation with cover50 dB
Magnetic shield insulation without cover20 dB
Usable length6000 mm
Type of connector, cable support systemScrewed
CO2 Footprint (GWP) Cradle-to-Gate21,8201 kg CO2e / 1 Meter

Loads

Support spacing 3.0 m2,9 kN/m
Support spacing 3.5 m2,59 kN/m
Support spacing 4.0 m2,3 kN/m
Support spacing 4.5 m2,04 kN/m
Support spacing 5.0 m1,8 kN/m
Support spacing 6.0 m1,4 kN/m
Support spacing 8.0 m0,7 kN/m
Support spacing 7.0 m1 kN/m
Load diagram, wide span cable tray, type WKSG 160

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width

Downloads

0 selected

Data sheet (1)
Declarations (5)
Certificates (1)
Instructions and Aid (1)
Product images (3)
3D data downloads (1)
Tender specifications (2)

Accessories

System accessories

Item no. 6227716

Straight connector FT
Type
WRVL 160 FT

Smallest selling unit: 2 piece

Variants

WKSG 163 FT
Item no.
6098554
Length
6000
Width
300
Maintain electrical functions
no
Plate thickness
2
