Wide span cable ladder WKLG 160 FT
Type WKLG 1630 FT | Item no. 6227139 | EAN 4012196169450
Item no. / Type
Length
Width
Rail thickness
Maintain electrical functions
no
Smallest selling unit: 6 m
6m
Description

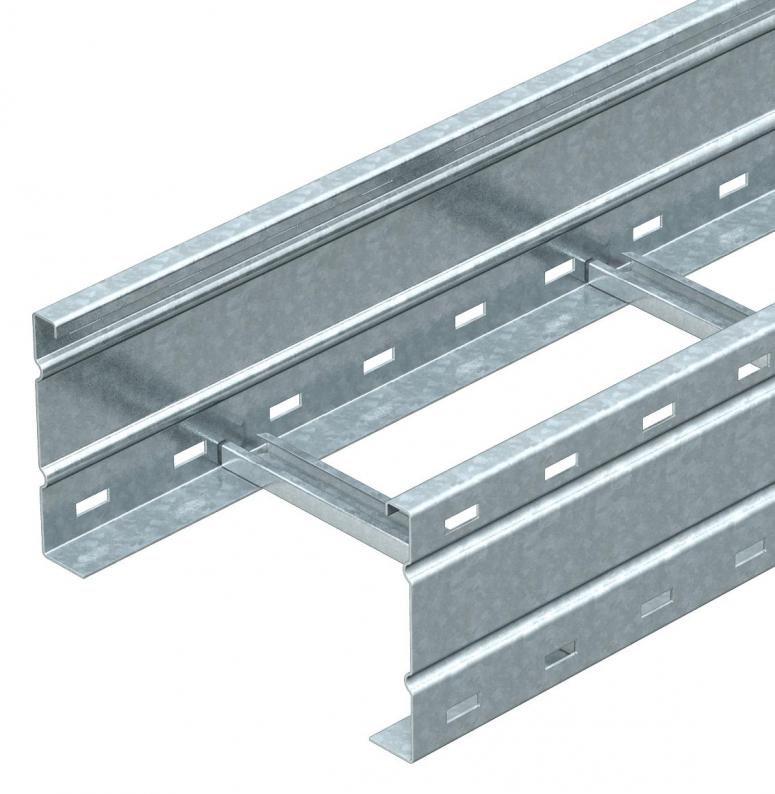

Wide span cable ladder with perforated side rail of side height of 160 mm. Fastening of cables with clamp clip, type 2056.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Straight connectors of type WRV 160 should be ordered separately and in the appropriate quantity.
Technical data

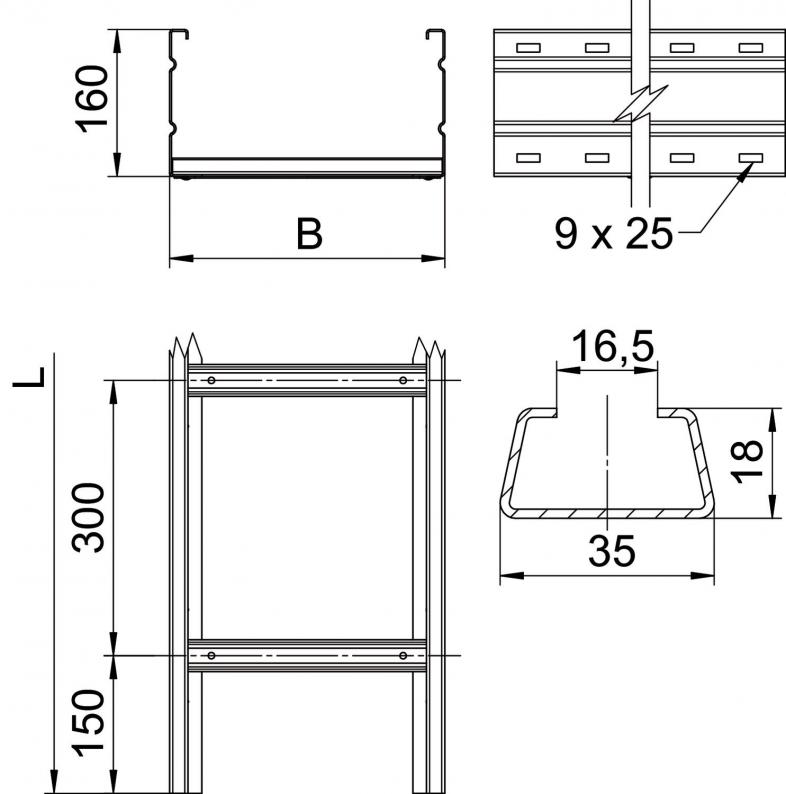

Dimensions
| Length | 6000 mm |
|---|---|
| Width | 300 mm |
| Height | 160 mm |
| Dimension L | 6000 mm |
| Dimension B | 300 mm |
| Rung slot dimension | 16,50 |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | yes |
| Wide-span version | yes |
| Usable cross-section | 427 cm² |
| Rustproof steel, pickled | no |
| Usable cross-section | 42700 mm² |
| Version of the rungs | Profile unperforated |
| Dimension | 160 x 300 |
| Rail thickness | 2 mm |
| Dimension | 160x300x6000 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 17,4469 kg CO2e / 1 Meter |
Loads
| Support spacing 3.0 m | 2,9 kN/m |
|---|---|
| Support spacing 3.5 m | 2,59 kN/m |
| Support spacing 4.0 m | 2,3 kN/m |
| Support spacing 4.5 m | 2,04 kN/m |
| Support spacing 5.0 m | 1,8 kN/m |
| Support spacing 6.0 m | 1,4 kN/m |
| Support spacing 8.0 m | 0,7 kN/m |
| Support spacing 7.0 m | 1 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width
Downloads
0 selected
Data sheet (1)
Declarations (5)
Certificates (1)
Instructions and Aid (2)
Product images (3)
3D data downloads (2)
Tender specifications (2)
Accessories
Mounting accessories
System accessories
Article
Type
Item no.
Amount
KS KL A2
6062284
Smallest selling unit: 30 piece
30piece
Item no. 6062284
Clamping piece for separating retainer fastening A2Type
KS KL A2
Smallest selling unit: 30 piece
30piece
Variants
Type
Length
Width
Maintain electrical functions
Rail thickness
Item no.
WKLG 1630 FT
6000
300
no
2
6227139
WKLG 1650 FT
6000
500
no
2
6227155
WKLG 1660 FT
6000
600
no
2
6227163
Width
WKLG 1630 FT
Item no.
6227139
Length
6000
Width
300
Maintain electrical functions
no
Rail thickness
2
WKLG 1650 FT
Item no.
6227155
Length
6000
Width
500
Maintain electrical functions
no
Rail thickness
2
WKLG 1660 FT
Item no.
6227163
Length
6000
Width
600
Maintain electrical functions
no
Rail thickness
2
