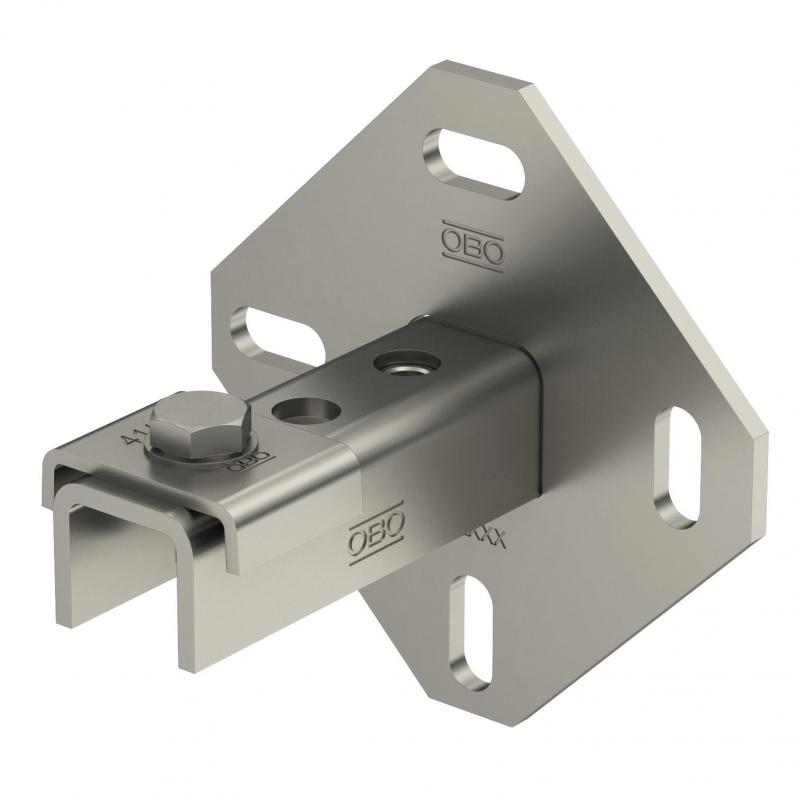

Wall, floor and ceiling bracket with 3 holes A4
Type WBDHE 41 A4 | Item no. 1123197 | EAN 4012195939306
Item no. / Type
1123197 / WBDHE 41 A4
Version for
Perforated
Smallest selling unit: 10 piece
10piece
Description
The wall, floor and ceiling bracket can ideally be used as a panel for wall, floor and ceiling mounting.
Also suitable for stand and frame construction in conjunction with the mounting rails MS4141.
Also suitable for stand and frame construction in conjunction with the mounting rails MS4141.
Technical data
Dimensions
| Length | 102 mm |
|---|---|
| Width | 134 mm |
| Height | 110 mm |
Technical data
| Slot width | 22 mm |
|---|---|
| Material thickness | 5 mm |
| Static value A | 2,97 cm² |
| Static value ly | 6,05 cm⁴ |
| Static value lz | 9,01 cm⁴ |
| Static value Wy | 2,91 cm³ |
| Static value Wz | 4,4 cm³ |
| Hole size | 25 x 11 mm |
| Profile shape | C profile |
| Version for | Perforated |
| Dimension | 134x110x102 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4571 |
| CO2 Footprint (GWP) Cradle-to-Gate | 4,9111 kg CO₂e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Length
Width
Height
Material thickness
Version for
Item no.
WBDHE 41 A4
102
134
110
5
Perforated
1123197
WBDHE 41 A4
Item no.
1123197
Length
102
Width
134
Height
110
Material thickness
5
Version for
Perforated
