Wall clamp/central hanger A2
Type K12 1818 A2 | Item no. 6016421 | EAN 4012196013036
Item no. / Type
6016421 / K12 1818 A2
Smallest selling unit: 25 piece
25piece
Description
Wall fixing for direct fixing of mesh cable trays of side height 55 mm on the wall.
As wall fastening up to max. mesh cable tray width 200 mm.
As centre suspension up to max. mesh cable tray width 200 mm.
As a pendulum suspension from a width of 300 mm.
Technical data
Technical data
| Rustproof steel, pickled | no |
|---|---|

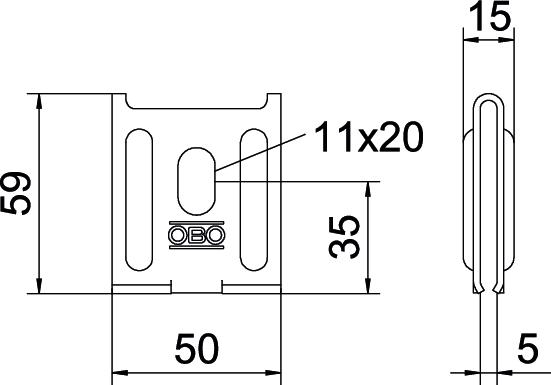

| Dimension | 50x59 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5885 kg CO2e / 1 Piece |
