Wall and support bracket MWA 12 FS

Wall and support bracket MWA 12 FS

Type MWA 12 11S FS | Item no. 6424716 | EAN 4012196636853

Show all variants
Item no. / Type
Width
F in kN
Colour
zinc

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

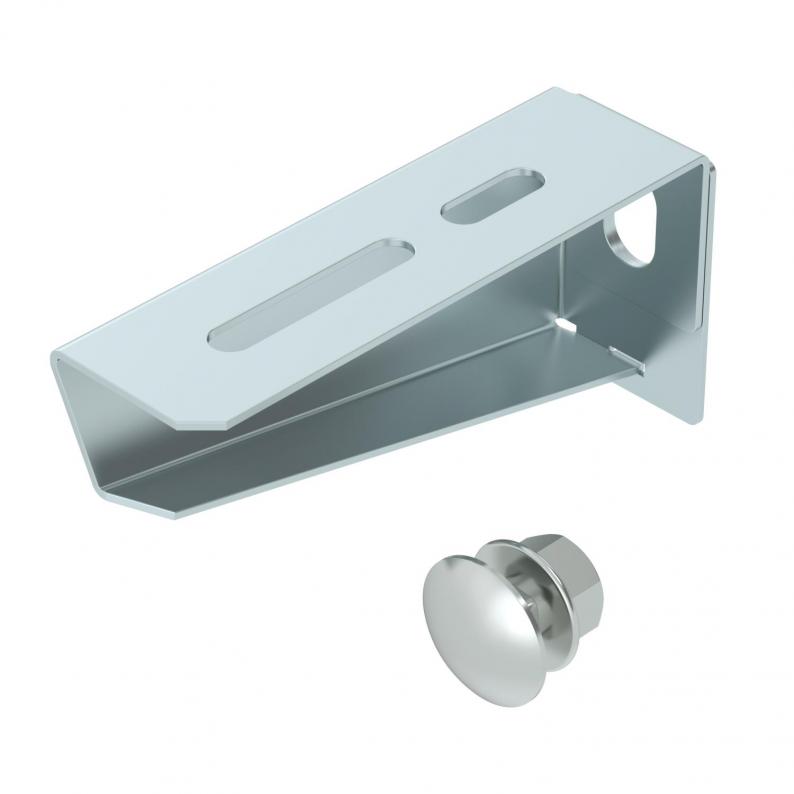

Light-duty wall and support bracket.

Including truss-head bolt M10 x 25 for fastening to

U supports.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length32,5 mm
Width110 mm
Height53 mm
Dimension A32,5 mm
Dimension B110 mm
Dimension H53 mm
Maß W110 mm

Technical data

Maintain electrical functionsyes
Rustproof steel, pickledno
Angle range, max.90 mm
Angle range, min.90 mm
Hole diameter11 mm
Version forWall and support bracket
F in kN1,2 kN
DimensionB110mm
SurfaceStrip galvanized
MaterialSteel
Colourzinc
CO2 Footprint (GWP) Cradle-to-Gate0,4573 kg CO2e / 1 Piece
Load diagram, bracket, type MWA 12

Bending of the bracket tip at permitted bracket load

Permitted bracket load in kN without man load

Load curve with bracket lengths in mm

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (5)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (1)
3D data downloads (2)
Tender specifications (2)

Variants

Width
MWA 12 11S FS
Item no.
6424716
Width
110
F in kN
1,2
Colour
zinc
MWA 12 21S FS
Item no.
6424732
Width
210
F in kN
1,2
Colour
zinc
MWA 12 31S FS
Item no.
6424740
Width
310
F in kN
1,2
Colour
zinc
MWA 12 41S FS
Item no.
6424759
Width
410
F in kN
1,2
Colour
zinc
