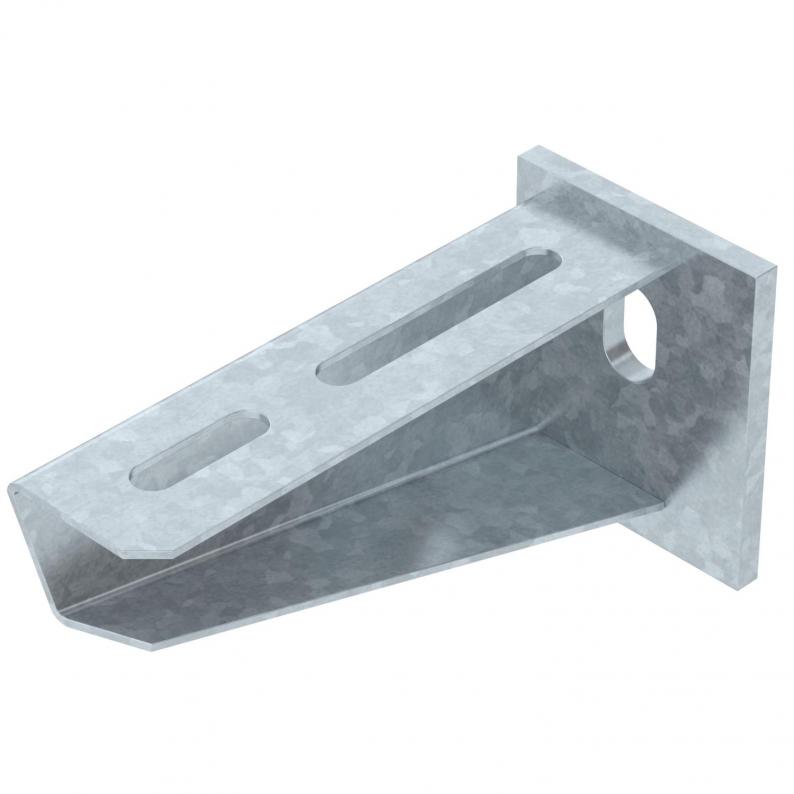

Wall and support bracket AW 30 FT
Type AW 30 11 FT | Item no. 6419704 | EAN 4012196206599
Item no. / Type
6419704 / AW 30 11 FT
Colour
zinc
Smallest selling unit: 1 piece
1piece
Description
Medium-duty wall and support bracket with welded head plate.
Fastening of the bracket to the U support of width 400 mm or greater using a hexagonal bolt through both sides of the support. Please insert suitable spacers.
Technical data
Dimensions
| Length | 50 mm |
|---|---|
| Width | 110 mm |
| Height | 60 mm |
| Dimension A | 50 mm |
| Dimension B | 110 mm |
| Dimension H | 60 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Rustproof steel, pickled | no |
| Angle range, max. | 90 mm |
| Angle range, min. | 90 mm |
| Hole diameter | 11 mm |
| EPD article | yes |
| Version for | Wall and support bracket |
| F in kN | 3 kN |
| Dimension | B110mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5485 kg CO2e / 1 Piece |
Bending of the bracket tip at permitted bracket load
Permitted bracket load in kN without man load
Load curve with bracket lengths in mm
