Wall and support bracket AW 30 FT

Wall and support bracket AW 30 FT

Type AW 30 11 FT | Item no. 6419704 | EAN 4012196206599

Show all variants
Item no. / Type
Width
F in kN
Colour
zinc

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

Medium-duty wall and support bracket with welded head plate.

Fastening of the bracket to the U support of width 400 mm or greater using a hexagonal bolt through both sides of the support. Please insert suitable spacers.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

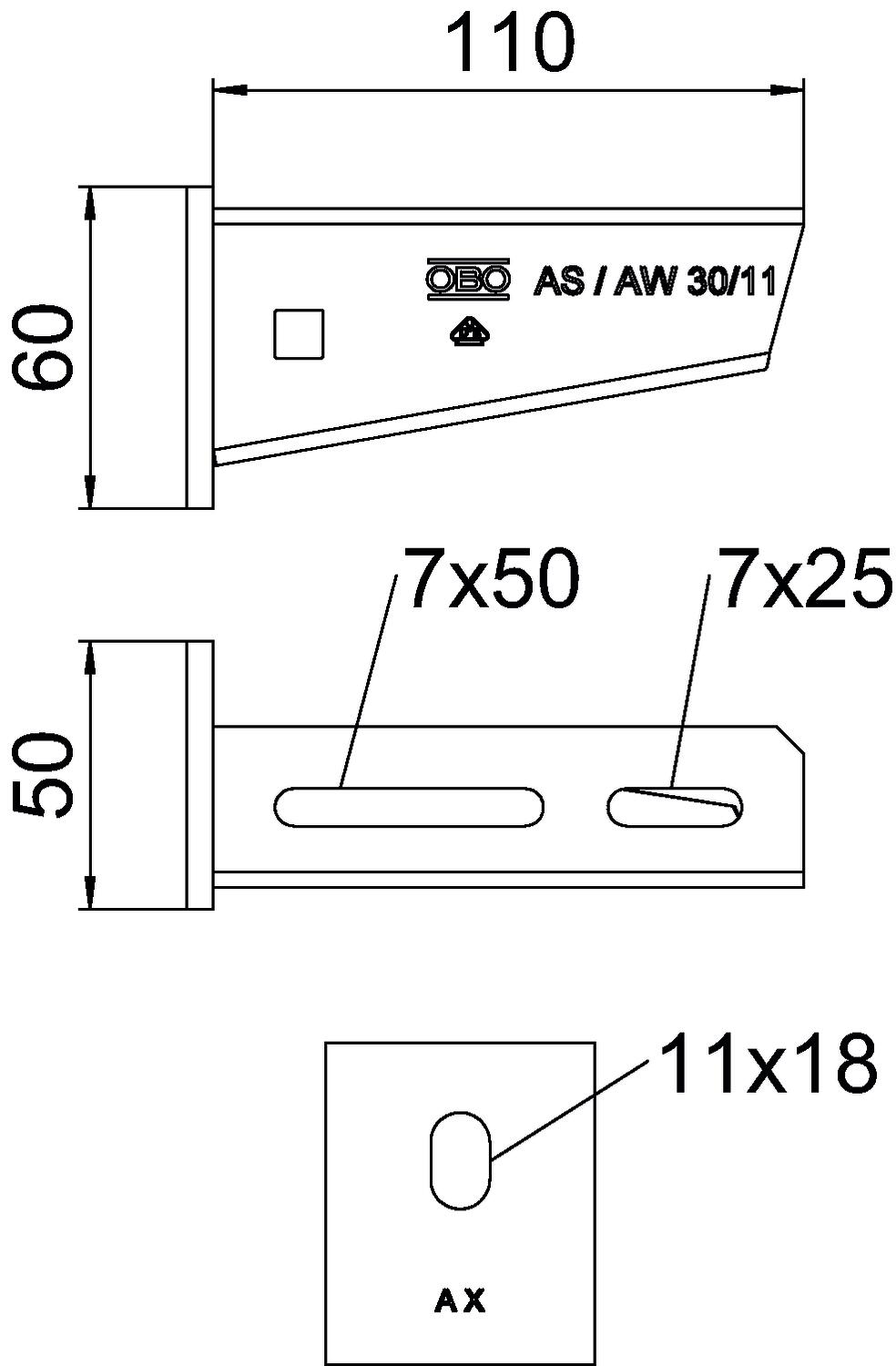

Dimensions

Length50 mm
Width110 mm
Height60 mm
Dimension A50 mm
Dimension B110 mm
Dimension H60 mm

Technical data

Maintain electrical functionsyes
Rustproof steel, pickledno
Angle range, max.90 mm
Angle range, min.90 mm
Hole diameter11 mm
EPD articleyes
Version forWall and support bracket
F in kN3 kN
DimensionB110mm
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
CO2 Footprint (GWP) Cradle-to-Gate0,5485 kg CO2e / 1 Piece
Load diagram, bracket, type AW 30

Bending of the bracket tip at permitted bracket load

Permitted bracket load in kN without man load

Load curve with bracket lengths in mm

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (5)
Declarations (5)
Certificates (1)
Instructions and Aid (4)
Product images (1)
3D data downloads (1)
Tender specifications (2)

Accessories

Mounting accessories
Type
FRSB 6x12 F

Smallest selling unit: 100 piece

Variants

Width
AW 30 11 FT
Item no.
6419704
Width
110
F in kN
3
Colour
zinc
AW 30 16 FT
Item no.
6419712
Width
160
F in kN
3
Colour
zinc
AW 30 21 FT
Item no.
6419720
Width
210
F in kN
3
Colour
zinc
AW 30 31 FT
Item no.
6419747
Width
310
F in kN
3
Colour
zinc
AW 30 41 FT
Item no.
6419763
Width
410
F in kN
3
Colour
zinc
AW 30 51 FT
Item no.
6419798
Width
510
F in kN
3
Colour
zinc
AW 30 61 FT
Item no.
6419828
Width
610
F in kN
3
Colour
zinc
AW 30 71 FT
Item no.
6419836
Width
710
F in kN
3
Colour
zinc
AW 30 56 FT
Item no.
6419844
Width
560
F in kN
3
Colour
zinc
