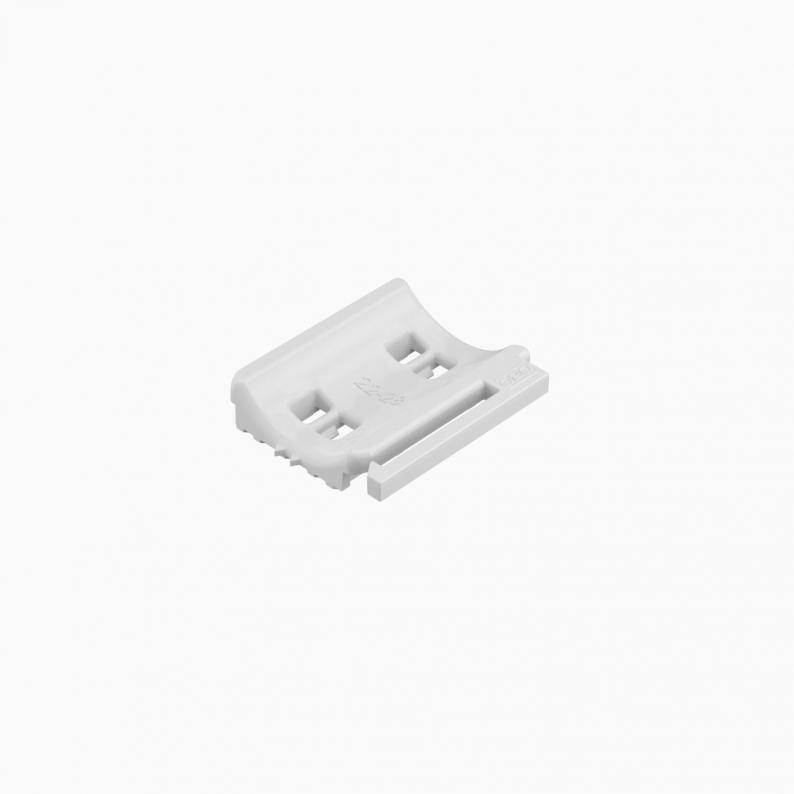

Universal counter-trough, plastic

Universal counter-trough, plastic

Type 2058UW 28 LGR
|
Item no. 1198028
|
EAN 4012196636174
Show all variants
Item no. / Type
Dimension L
Dimension B
Dimension H
Clamping range D, min.
Clamping range D, max.

Smallest selling unit: 100 piece

piece

Description

Regardless of the type of rail, the counter-trough can be used by applying it onto one side of the clamp clip. Due to an intelligent contour on the backside, the counter-trough can be combined to a double trough. Retrofitting possible without the need to dismantle.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Clamp clip for flat and U-iron from 4–12 mm
  • Clamp clip for C profile rail, slot width 11–12 mm
  • Clamp clip for C profile rail, slot width 16–17 mm
  • Clamp clip for C profile rail, slot width 18–22 mm
  • Clamp clip for angle irons with 40 mm leg length
  • CO₂ footprint (PCF)

Technical data

Dimensions

Dimension L37 mm
Dimension B33,5 mm
Dimension H8,3 mm

Technical data

Counter-trough/clip versionCounter sleeve
Suitable for max. cable diameter28 mm
Clamping range D, min.22 mm
Clamping range D, max.28 mm
Dimension22-28mm
MaterialPolypropylene
ColourLight grey; RAL 7035

Environmental Data

0,0145 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,0145 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Dimension B
Dimension H
Clamping range D, min.
Clamping range D, max.
2058UW 16 LGR
Item no.
1198016
Dimension L
37
Dimension B
21,5
Dimension H
5,8
Clamping range D, min.
12
Clamping range D, max.
16
2058UW 22 LGR
Item no.
1198022
Dimension L
37
Dimension B
27,5
Dimension H
6,8
Clamping range D, min.
16
Clamping range D, max.
22
2058UW 28 LGR
Item no.
1198028
Dimension L
37
Dimension B
33,5
Dimension H
8,3
Clamping range D, min.
22
Clamping range D, max.
28
2058UW 34 LGR
Item no.
1198034
Dimension L
37
Dimension B
45,5
Dimension H
9,8
Clamping range D, min.
28
Clamping range D, max.
34
