TP support / wall and support bracket FS

TP support / wall and support bracket FS

Type TPSAG 245 FS | Item no. 6366031 | EAN 4012196545353

Show all variants
Item no. / Type
6366031 / TPSAG 245 FS
Colour
zinc

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

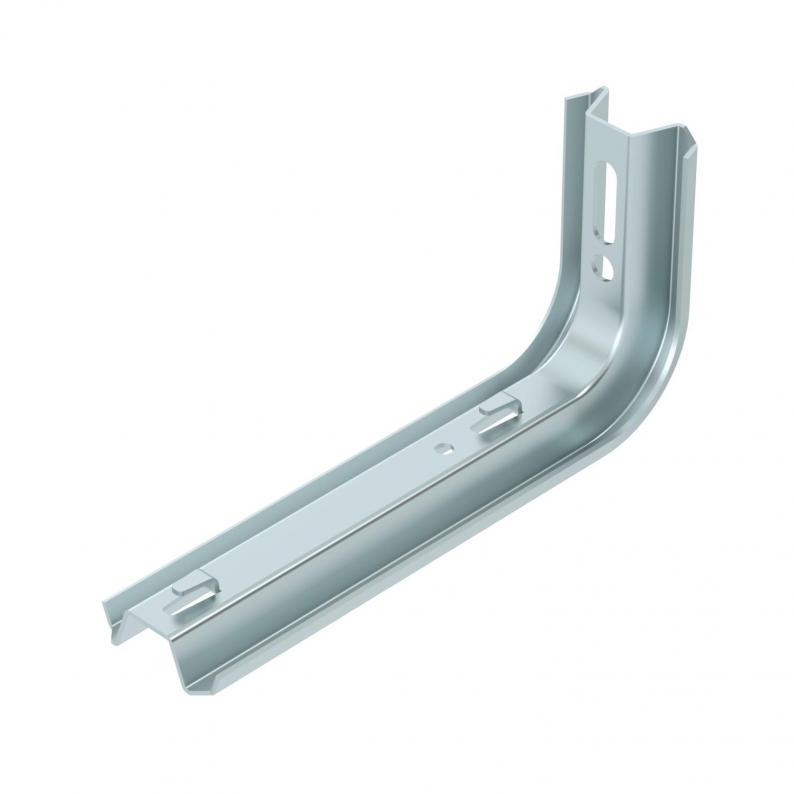

TP bracket with clamping lugs for screwless mesh cable tray fastening.

If the bracket is fastened directly to the wall or the profiles are screwed together, then, for reasons of stability, always use the spacer, type DS 4.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • TP profile and suspended support and bracket
  • Mesh cable tray, slant height 35 mm
  • Mesh cable tray, slant height 55 mm
  • Easy mounting component
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

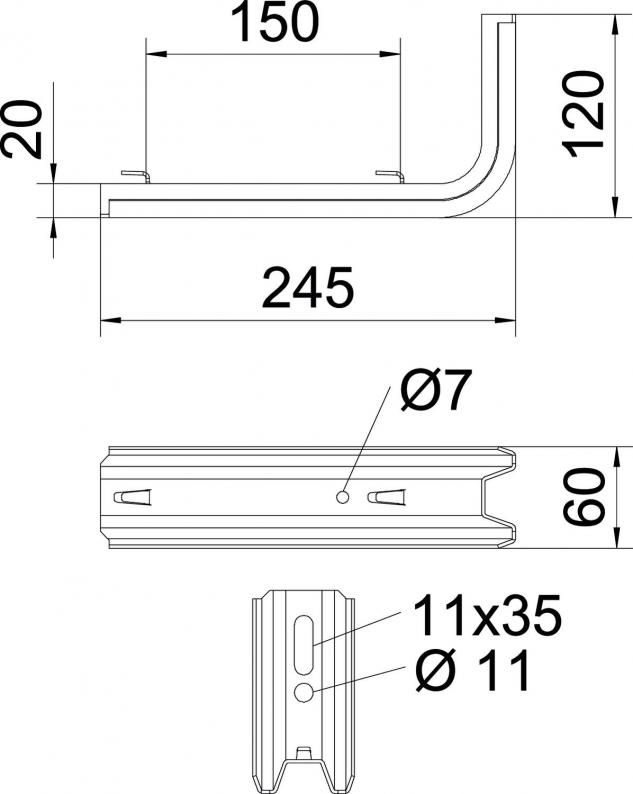

Dimensions

Length245 mm
Width60 mm
Height120 mm
Dimension L245 mm
Dimension B60 mm
Dimension H120 mm
Maß W150 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
for width max.200 mm
for width min.200
Version forWall and support bracket
F in kN0,9 kN
DimensionB245mm
SurfaceStrip galvanized
MaterialSteel
Colourzinc
CO2 Footprint (GWP) Cradle-to-Gate1,0765 kg CO2e / 1 Piece
Load diagram, bracket, type TPSAG

Bending of the bracket tip at permitted bracket load

Permitted bracket load in kN without man load

Support width in m

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (5)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (2)

Variants

TPSAG 245 FS
Item no.
6366031
Width
60
F in kN
0,9
Colour
zinc
