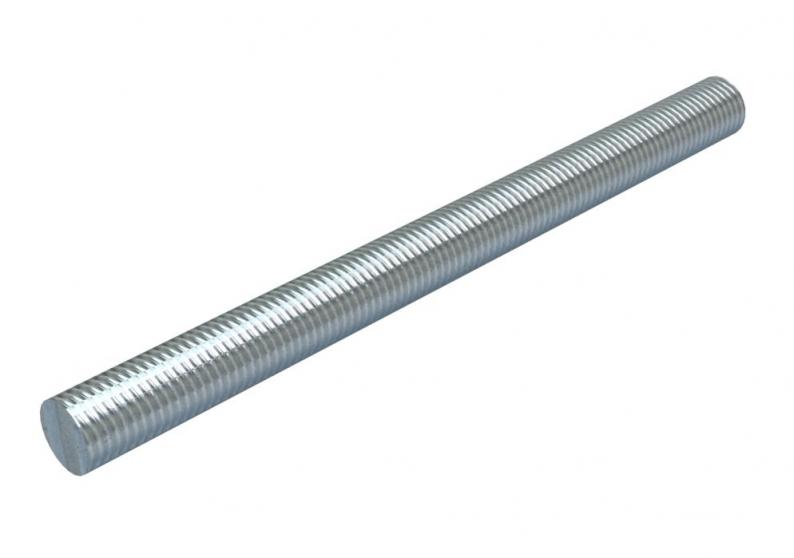

Threaded rod G 1000
Type TR M12 1M G | Item no. 3141306 | EAN 4012195253457
Item no. / Type
3141306 / TR M12 1M G
Thread
M12
Threaded rod resistance class
8.8
Smallest selling unit: 10 piece
10piece
Description
Threaded rod to DIN 976.
Technical data

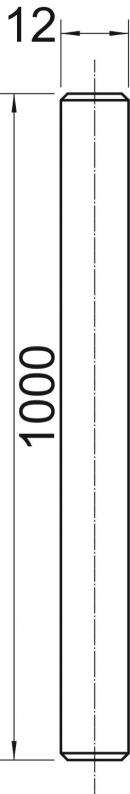

Dimensions
| Length | 1000 mm |
|---|---|
| Dimension L | 1000 mm |
| Dimension d | 12 mm |
Technical data
| Thread metric | 12 |
|---|---|
| Thread | M12 |
| Breaking load | 33,7 kN |
| Dimension | M12x1000mm |
| Surface | Electrogalvanized |
| Material | Steel |
| Left thread | no |
| Threaded rod resistance class | 8.8 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (3)
Product images (3)
3D data downloads (2)
Tender specifications (2)
Variants
Type
Length
Thread
Threaded rod resistance class
Item no.
TR M12 1M G
1000
M12
8.8
3141306
TR M12 1M G
Item no.
3141306
Length
1000
Thread
M12
Threaded rod resistance class
8.8
