Terminal strip 6–16 mm², junction box, T series, X series
Type KL-T 06-16 | Item no. 2016190 | EAN 4012195896951
Item no. / Type
2016190 / KL-T 06-16
No. of terminals
4
Smallest selling unit: 10 piece
10piece
Description
Brass terminals, steel screws, electrogalvanised and transparently passivated, nominal cross-section 6 ÷ 16 mm², nominal voltage 400 V, 1-pin, with terminal sockets, max. connectable conductor per terminal 4 x 16 mm², 4 x 10 mm², 8 x 6 mm² or 12 x 4 mm².
System accessories for junction boxes T100, T160, T250, T350
Technical data

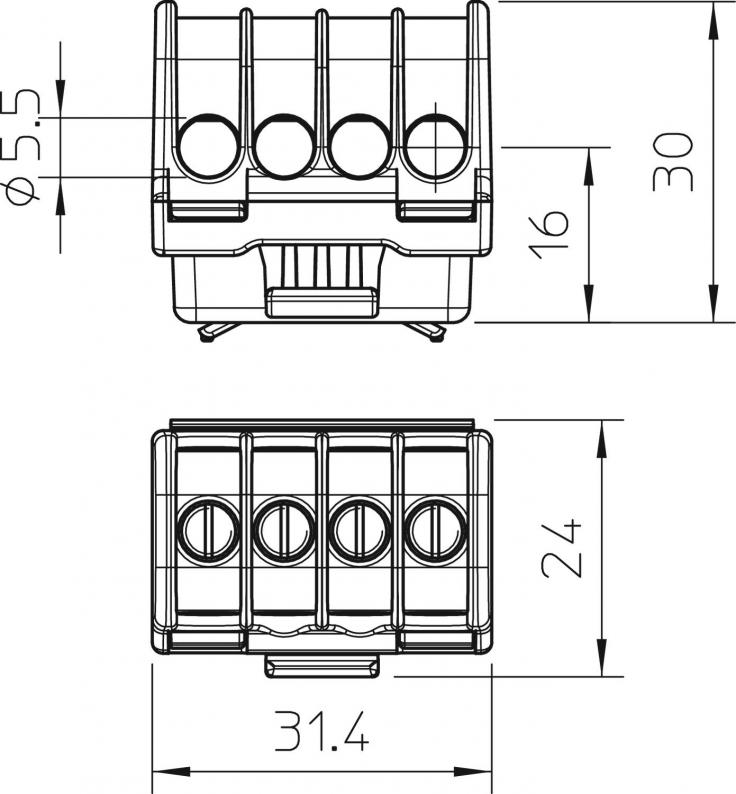

Dimensions
| Length | 31,4 mm |
|---|---|
| Width | 24 mm |
| Height | 30 mm |
Technical data
| Pole number | 1 |
|---|---|
| Nominal current | 76 A |
| Nominal voltage | 400 V |
| Explosion-tested version | no |
| Closing plate required | no |
| Insulation material | Thermoplast |
| Transparent | no |
| Number of screwless terminals per pole | 1 |
| Version of electrical connection 1 | Screw connection |
| Connection position | Side |
| Connectable conductor cross-section, single-wire, min. | 4 mm² |
| Connectable conductor cross-section, single-wire, max. | 16 mm² |
| Nominal cross-section, min. | 6 mm² |
| Nominal cross-section, max. | 16 mm² |
| Cross-section | Max. connectable conductors per terminal max. 4 x 16 mm², 4 x 10 mm², 8x6 mm² or 12 x 4 mm² mm² |
| No. of terminals | 4 |
| Dimension | 16mm² |
| Material | Polyamide |
| Colour | Light grey |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0903 kg CO2e / 1 Piece |
