Straight and angle connector A2
Type LWVG 60 A2 | Item no. 6208898 | EAN 4012195065616
Item no. / Type
6208898 / LWVG 60 A2
Smallest selling unit: 10 piece
10piece
Description
Angle connector as external connector to join cable ladders and fittings with a side height of 60 mm and continuous rail perforation.
The bolt fastening ensures the continuity of the equipotential bonding.
Technical data

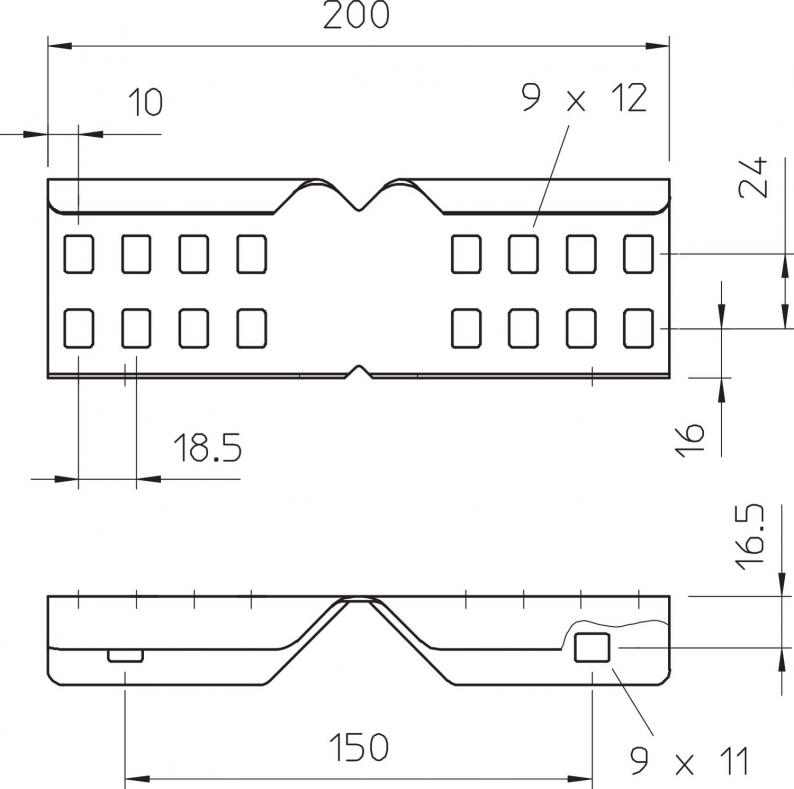

Dimensions
| Length | 200 mm |
|---|---|
| Width | 28 mm |
| Height | 60 mm |
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Plate thickness | 1,5 mm |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | yes |
| Suitable for cable tray | no |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Dimension | 64x150 |
| Suitable for cable tray system height | 60 mm |
| Version for | Angle connector |
| Connection type | Screw connector |
| Dimension | 64x150 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,3755 kg CO2e / 1 Piece |
