Straight and angle connector 60 FT
Type RWVL 60 FT
|Item no. 6067611
|EAN 4012196065950
Item no. / Type
6067611 / RWVL 60 FT
Colour
zinc
Smallest selling unit: 10 piece
10piece
piece
Description

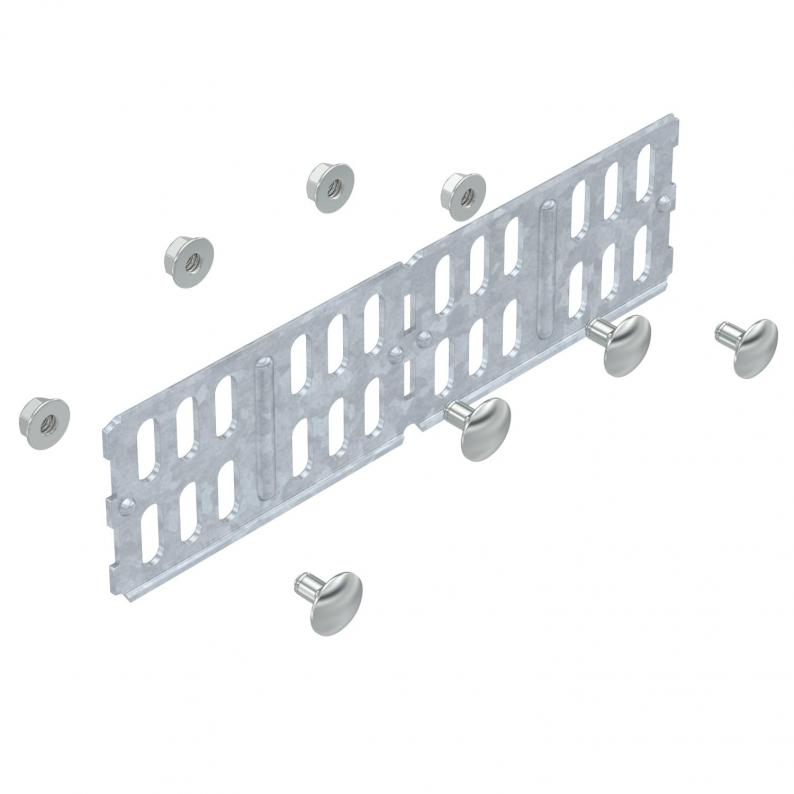

Straight and angle connector for cable trays and fittings with a side height of 60 mm.
Including appropriate fastening material.
Technical data
Dimensions
| Length | 200 mm |
|---|---|
| Width | 4 mm |
| Height | 60 mm |
Materials and Packaging
| Packaging made completely from recycled cardboard. | yes |
|---|
Technical data
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4434 kg CO2e / 1 Piece |
|---|---|
| Maintain electrical functions | no |
| Rustproof steel, pickled | no |
| Plate thickness | 2 mm |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Dimension | 200 x 56 |
| Suitable for cable tray system height | 60 mm |
| Version for | Angle connector |
| Connection type | Screw connector |
| Dimension | 60x200 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
