Straight and angle connector 110 FT
Type RLVL 110 FT | Item no. 6067913 | EAN 4012196066193
Item no. / Type
6067913 / RLVL 110 FT
Colour
zinc
Smallest selling unit: 10 piece
10piece
Description

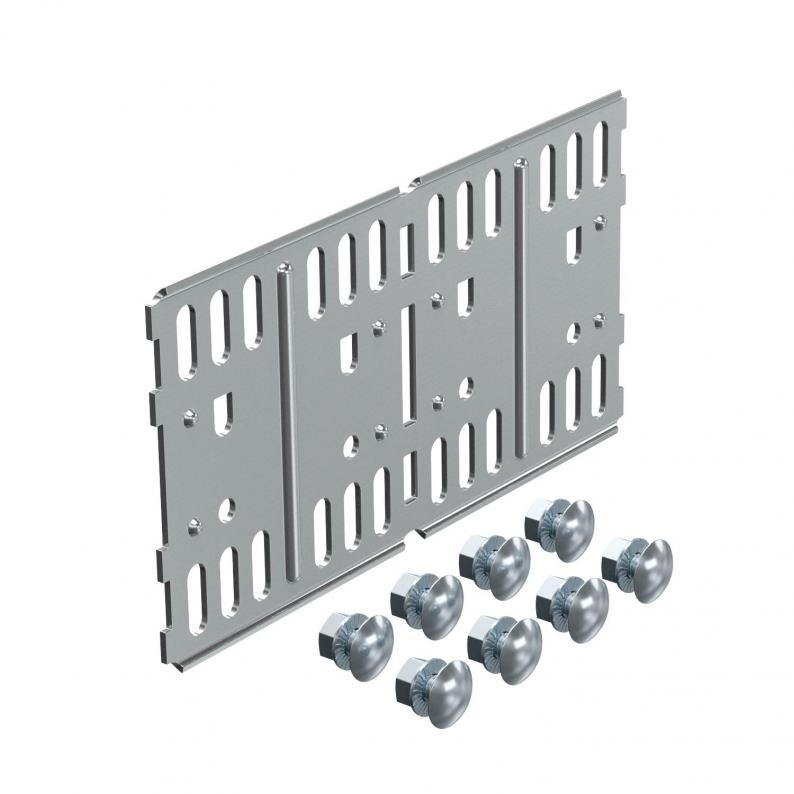

Straight and angle connector for cable trays and fittings with a side height of 110 mm.
Including appropriate fastening material.
Technical data

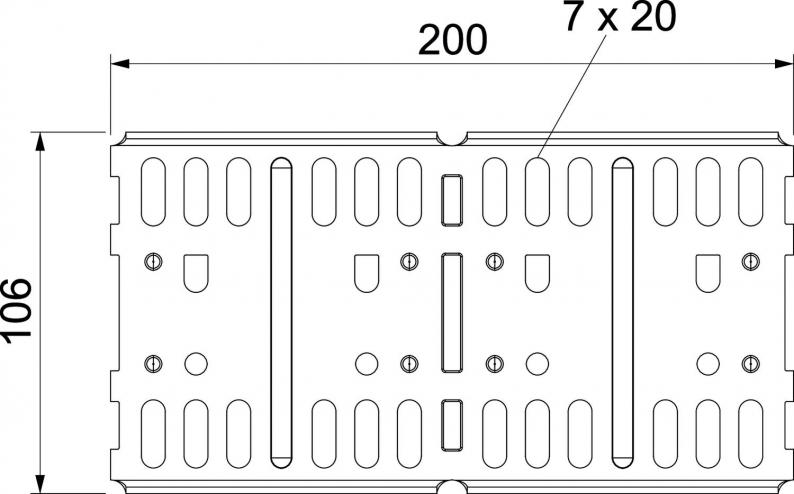

Dimensions
| Length | 200 mm |
|---|---|
| Width | 4 mm |
| Height | 110 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Suitable for cable tray system height | 110 mm |
| Version for | Straight connector |
| Connection type | Screw connector |
| Dimension | 110x200 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,8547 kg CO2e / 1 Piece |
