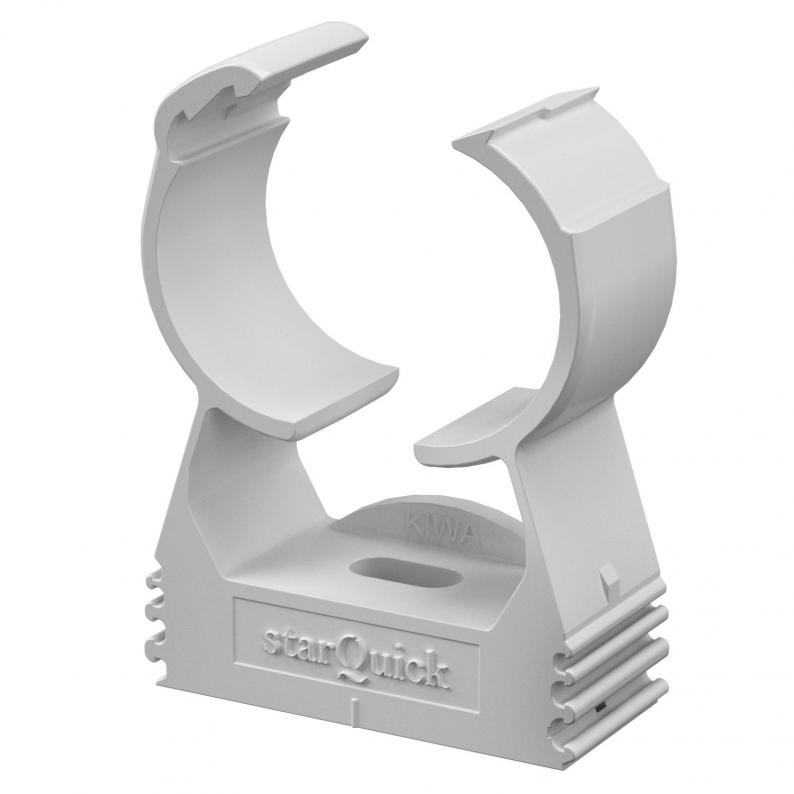

starQuick clip
Type SQ-25 LGR | Item no. 2146207 | EAN 4012195595717
Item no. / Type
2146207 / SQ-25 LGR
Nominal size
25-28
This item is a discontinued product!
Smallest selling unit: 50 piece
50piece
Description
Highly stable clip to accept plastic and metal electrical and sanitary pipes, as well as the Quick Pipe electrical installation pipe. Universal fastening options on walls, ceilings and steel structures, both indoors and outdoors. Flexible clamping range of several millimetres. Toolless pipe mounting. Can be arranged to up to Ø 28 mm, also with OBO Quick starQuick clip. For high load values, can be combined with double bracket. Can be mounted on profile rails for variable spacings and numbers of clips.
Technical data
Dimensions
| Dimension A | 40 mm |
|---|---|
| Dimension B | 17 mm |
| Dimension H | 49,5 mm |
| Dimension F | 4,5 mm |
| Dimension h | 10,5 mm |
| Dimension E | 10 mm |
Technical data
| Nominal size | 25-28 |
|---|---|
| Halogen-free | yes |
| UV-resistant | yes |
| Expandable | yes |
| Closed | yes |
| Number of cables/pipes | 1 |
| Breaking load | 0,85 kN |
| With inlay | no |
| Fastening type | Screw hole |
| Clamping range D, max. | 28 mm |
| Clamping range D, min. | 24 mm |
| Flame-resistant | acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C |
| Dimension | 24-28mm |
| Material | Polyamide |
| Colour | Light grey; RAL 7035 |
