Service pole, type ISSOG70140

Type ISSOG70140EL | Item no. 6289088 | EAN 4012196258697

Data sheet (PDF)

Declaration of conformity (PDF)

Show all variants

Item no. / Type

6289088 / ISSOG70140EL

Fastening type

Tension

Surface

Anodised

Material

Aluminium

Colour

aluminium

Smallest selling unit: 1 piece

Description Technical data Downloads Accessories Variants

Description

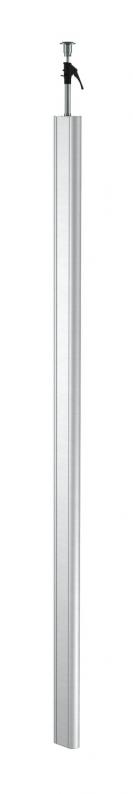

ISS service pole, oval shape, aluminium, with a 76.5 mm system opening.

Set consists of:

1 single-compartment column with clamping attachment

Total length: 3,315‒3,480 mm

1 single-compartment pole with clamping device

1 trunking installation profile

Length 3,000 mm

1 aluminium cover

Length: 3,000 mm

The area for device installation is suitable for accepting front-locking accessory mounting boxes of the series 71GD...

The following accessories can be used, depending on the mounting situation.

Technical data

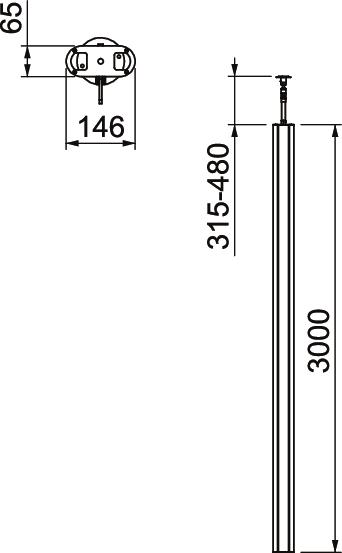

Dimensions

Length	3000 mm
Width	146 mm
Height	65 mm
Pole height, max.	3480 mm
Pole height, min.	3315 mm

Technical data

Number of compartments	1 St.
Halogen-free	yes
Pole shape	Oval
Adjustable	yes
Height compensation, max.	480 mm
Height compensation, min.	315 mm
Number of usable covers	1
Changes according to location	no
Ceiling mounting	yes
Floor mounting	yes
Cable entry	Top/bottom
Pre-wired	no
Continuous profile	yes
Version for	Single-sided
Fastening type	Tension
Cover width	76,5 mm
Dimension	3000x146x65
Surface	Anodised
Material	Aluminium
Colour	aluminium
CO2 Footprint (GWP) Cradle-to-Gate	93,3884 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)

Catalogues & Flyers (1)

Declarations (2)

Instructions and Aid (2)

Product images (2)

3D data downloads (1)

Tender specifications (2)

Accessories

System accessories

Item no. 6288610

Accessory mounting box 71GD6, single

Type

71GD6

Smallest selling unit: 5 piece

Item no. 6288608

Accessory mounting box 71GD7-2, double

Type

71GD7-2

Smallest selling unit: 2 piece

Variants

ISSOG70140EL

Item no.

6289088

Length

3000
