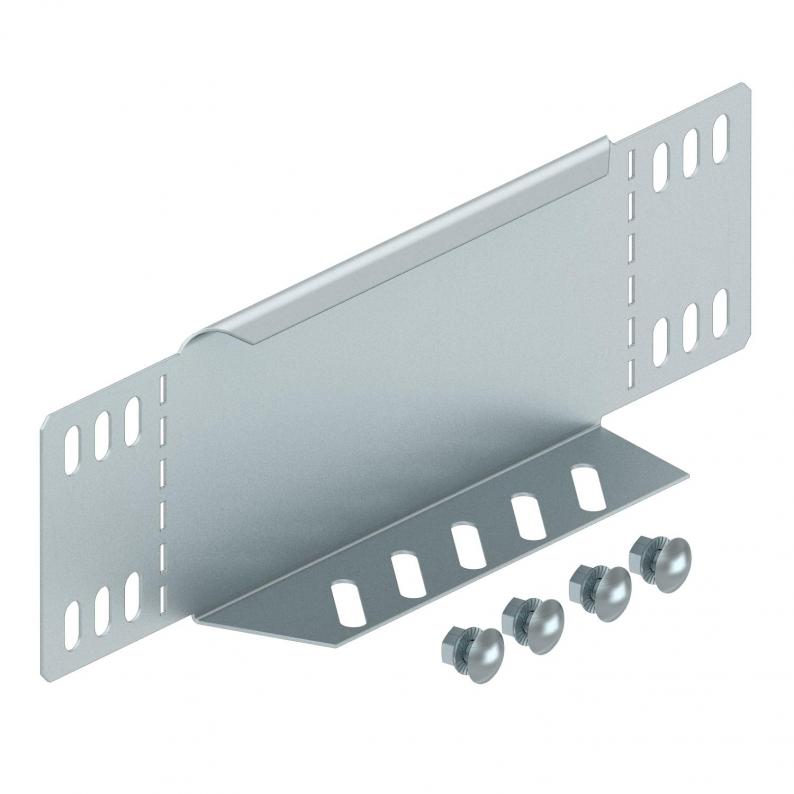

Reducer / stop-end FS
Type RWEB 820 FS
|Item no. 7110200
|EAN 4012196242474
Item no. / Type
Width
Height
Smallest selling unit: 1 piece
1piece
piece
Description
Reducer/stop-end for cable trays with side height 85 mm.
From a width of 150 mm, a perforated bottom flange is available.
Including appropriate fastening material.
Technical data

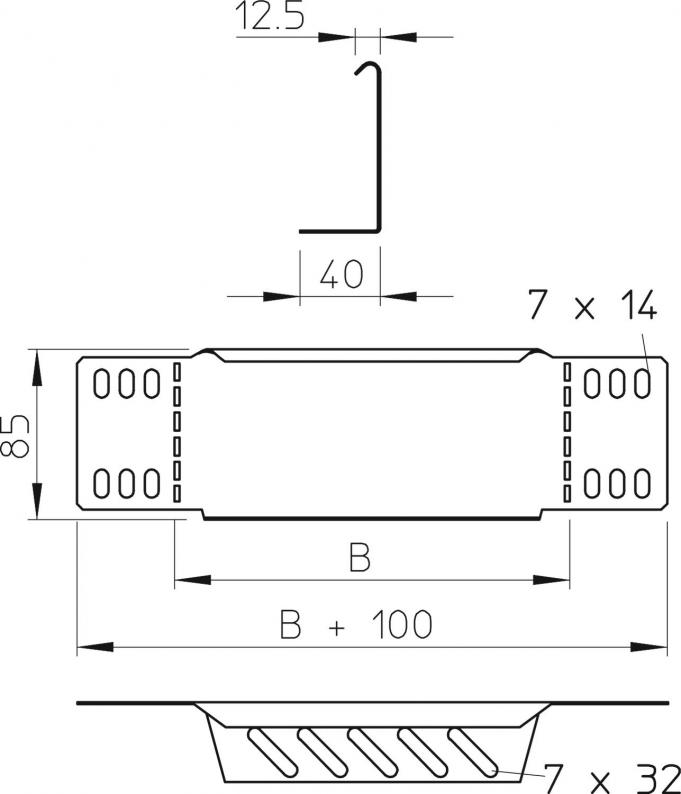

Dimensions
| Width | 200 mm |
|---|---|
| Height | 85 mm |
| Dimension B | 200 mm |
Technical data
| CO2 Footprint (GWP) Cradle-to-Gate | 0,9288 kg CO2e / 1 Piece |
|---|---|
| Maintain electrical functions | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1 mm |
| Dimension | 85x200 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (4)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Accessories
Mounting accessories
Article
Type
Item no.
Amount
Item no. 6406122
Truss-head bolt with flange nut FType
FRSB 6x12 F
Smallest selling unit: 100 piece
100piece
piece
Variants
Type
Width
Height
Item no.
RWEB 820 FS
200
85
7110200
RWEB 830 FS
300
85
7110308
Width
RWEB 820 FS
Item no.
7110200
Width
200
Height
85
RWEB 830 FS
Item no.
7110308
Width
300
Height
85
