Quick-Pipe®, light grey
Type 2953 M25 LGR | Item no. 2153920 | EAN 4012195025214
Item no. / Type
2153920 / 2953 M25 LGR
Size
M25
Smallest selling unit: 30 m
30m
Description

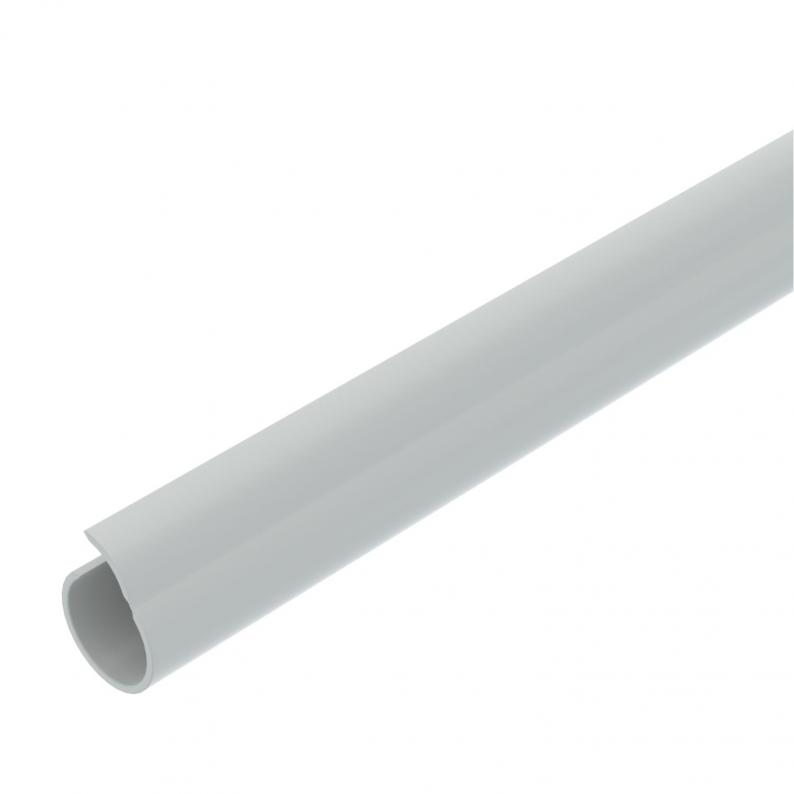

Open plastic Quick-Pipe® pipe for surface-mounted routing of cables in interiors and protected outdoor areas. Mounting on wall and ceiling with Quick clip, proQuick clip and Multi-Quick clip. Toolless closing and opening through turning in the clip. Can be used in a temperature range of –25 to +60 °C.
Technical data

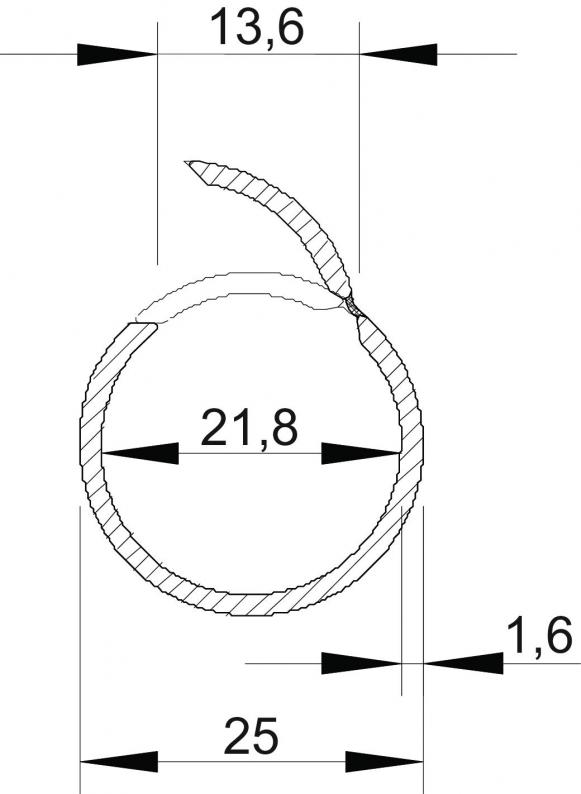

Dimensions
| Length | 2000 mm |
|---|---|
| Dimension t | 1,6 mm |
| Dimension C | 13.6 mm |
| Dimension D | 25 mm |
Technical data
| Halogen-free | no |
|---|---|
| Size | M25 |
| Flame-resistant version | no |
| Classification code | 0 |
| Concealed | no |
| Surface-mounted | yes |
| Concrete installation | no |
| Machines and system installation | yes |
| Underfloor installation (screed) | no |
| Installation outdoors | no |
| Installation on wood | yes |
| Installation in the earth | no |
| With sleeve | no |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -25 °C |
| Dimension | M25 |
| Material | Polyvinylchloride |
| Colour | Light grey; RAL 7035 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3491 kg CO₂e / 1 Meter |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Certificates (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
