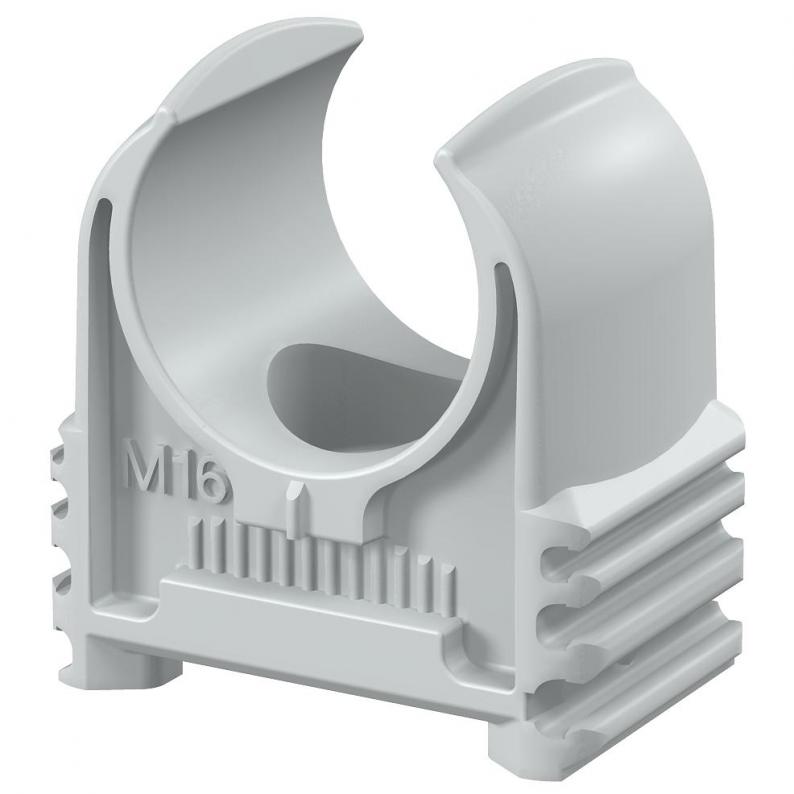

Quick clip, for push-fit anchors, light grey

Type 2957 M16 | Item no. 2149701 | EAN 4012195931911

Description

Flush-mounted clip to accept metric steel armoured pipes and heavy-duty insulating pipes, as well as Quick Pipe electrical installation pipes. Universal fastening options on walls and ceilings, both in indoor and protected outdoor areas. With slot for side alignment during mounting with wood screw or knock-in anchor. Toolless pipe mounting. Can also be arranged with OBO Multi-Quick or starQuick clip. M16 - M32 size can be screwed onto M6 thread. Recommended fastening spacing 50–60 cm, for max. extraction values F at a room temperature of 20 °C, see the table.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
  • CO₂ footprint (PCF)

Technical data

Dimensions

Dimension A25,3 mm
Dimension B16 mm
Dimension H26 mm
Dimension C11,4 mm
Dimension F4,2 mm
Dimension h7 mm
Dimension E7 mm
Dimension D15,6 mm

Technical data

Nominal sizeM16
Halogen-freeyes
UV-resistantno
Expandableyes
Closedno
Number of cables/pipes1
With inlayno
Fastening typeScrew hole
Clamping range D, min.16 mm
DimensionM16
MaterialAcrylonitrile butadiene styrene
ColourLight grey; RAL 7035
CO2 Footprint (GWP) Cradle-to-Gate0,0153 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Certificates (1)
Product images (4)
Tender specifications (2)

Variants

Nominal size
2957 M16
Item no.
2149701
Nominal size
M16
2957 M19-20
Item no.
2149710
Nominal size
M19-20
