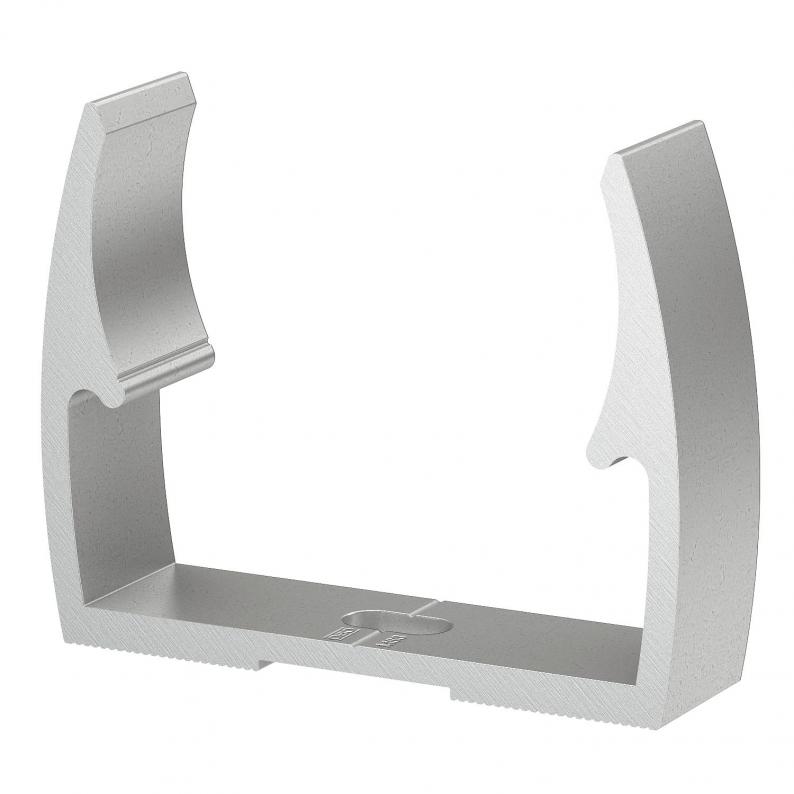

Quick clip, aluminium
Type ALQ M25 | Item no. 2149925 | EAN 4012196409259
Item no. / Type
2149925 / ALQ M25
Nominal size
25
Smallest selling unit: 100 piece
100piece
Description
OBO Quick clip, type ALQ M, for all metric ALU pipe systems, as well as light-duty and heavy-duty insulation pipes. Suitable for mounting the OBO pipe system, material: aluminium. Pipe centring aids allow optimal attachment of the pipe and automatically turn the clip into the correct position.
Slot for side alignment during mounting with wood screw or knock-in anchor.
Recommended fastening spacing 50−60 cm.
Slot for side alignment during mounting with wood screw or knock-in anchor.
Recommended fastening spacing 50−60 cm.
Technical data

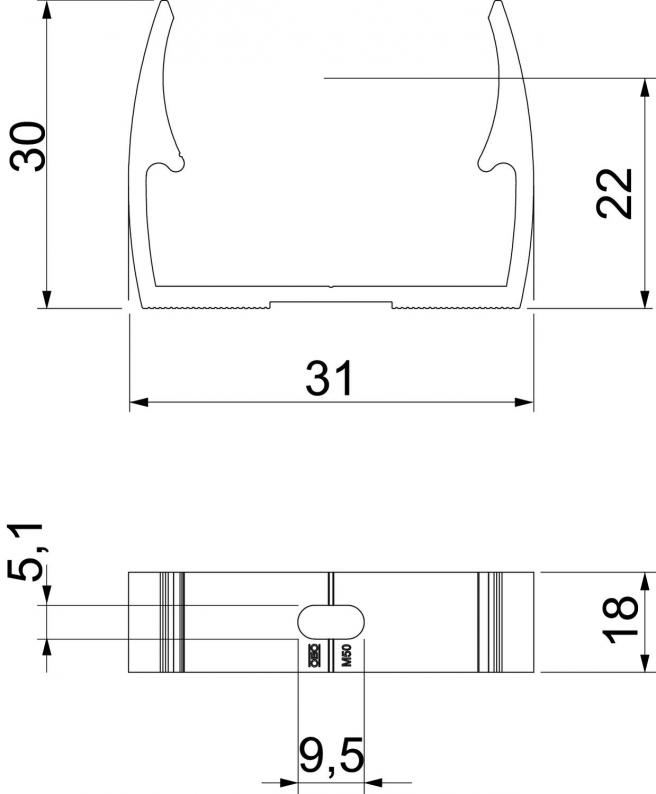

Dimensions
| Dimension A | 31 mm |
|---|---|
| Dimension B | 18 mm |
| Dimension H | 30 mm |
| Dimension F | 9,5 mm |
| Dimension h | 22 mm |
| Dimension E | 5,1 mm |
Technical data
| Nominal size | 25 |
|---|---|
| Halogen-free | no |
| Pull-out value | 90 N |
| UV-resistant | yes |
| Expandable | no |
| Closed | no |
| Number of cables/pipes | 1 |
| With inlay | no |
| Fastening type | Screw hole |
| Clamping range D, max. | 25 mm |
| Clamping range D, min. | 25 mm |
| Dimension | M25 |
| Material | Aluminium |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1856 kg CO₂e / 1 Piece |
