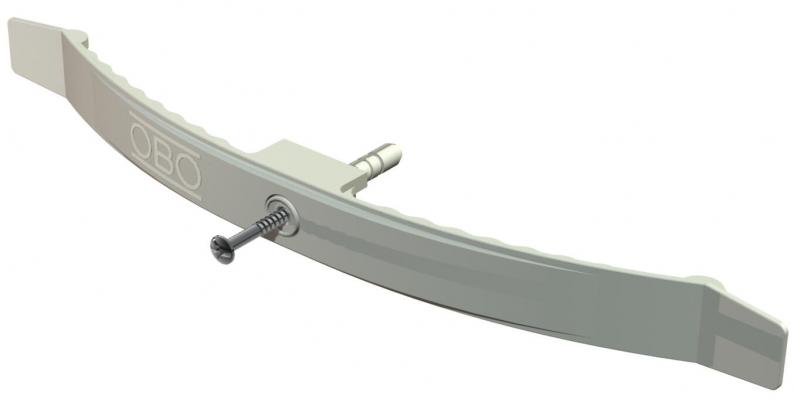

Pressure clip with knock-in anchor, for 16 cables
Type 2033 SD | Item no. 2204819 | EAN 4012195210979
Item no. / Type
No. of conductors NYM 3 x 1.5
16
Smallest selling unit: 25 piece
25piece
Description
With pre-mounted knock-in anchor, 6 mm Ø.
Required drill hole depth 50 mm.
Clamping height 9 mm – with spacer 13 mm.
Fastening hole 6 mm Ø.
2033/SD for max. 16 cables NYM 3 x 1.5 mm²
Required drill hole depth 50 mm.
Clamping height 9 mm – with spacer 13 mm.
Fastening hole 6 mm Ø.
2033/SD for max. 16 cables NYM 3 x 1.5 mm²
Technical data

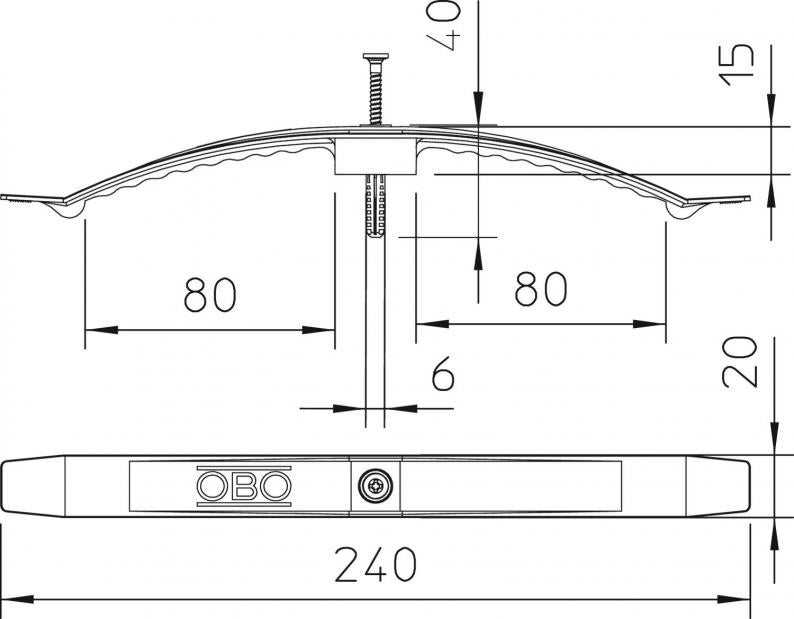

Dimensions
| Length | 240 mm |
|---|---|
| Width | 20 mm |
| Height | 64 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| No. of conductors NYM 3 x 1.5 | 16 |
| Halogen-free | yes |
| Flame-resistant version | no |
| With anchor | yes |
| Dimension | 2x8 NYM3x1,5 |
| Material | Polyamide |
| Colour | Light grey; RAL 7035 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1143 kg CO₂e / 1 Piece |
