Plastic trunking cover, smooth

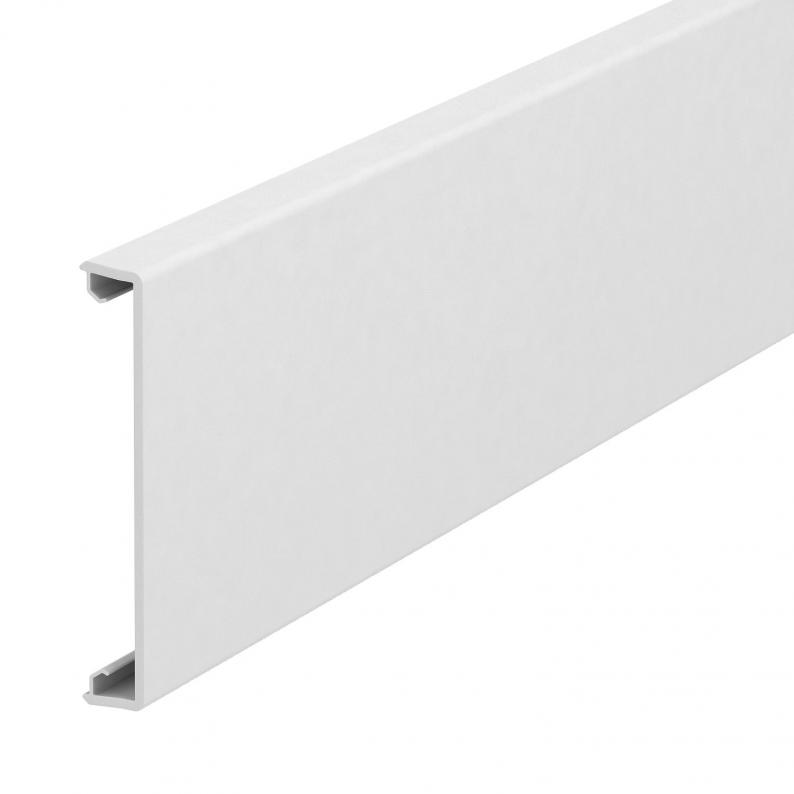

Plastic trunking cover, smooth

Type GK-OTGRW | Item no. 6278680 | EAN 4012195666400

Show all variants
Item no. / Type
Length
Colour

Smallest selling unit: 2 m

DescriptionTechnical dataDownloadsVariants

Description

Smooth trunking cover, for closing device installation trunking with 76.5 mm system opening.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length2000 mm
Width76,5 mm
Height12 mm

Technical data

Protection ratingIP30
Cover mounting typeInternal
Protection rating IK codeIK08
Version forSmooth
Permitted temperature range, max.60 °C
Permitted temperature range, min.-15 °C
Dimension80x2000mm
MaterialPolyvinylchloride
ColourPure white; RAL 9010
Antibacterial treatmentno
CO2 Footprint (GWP) Cradle-to-Gate0,5366 kg CO2e / 1 Meter

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (2)
Declarations (4)
Certificates (2)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

Colour
GK-OTGSW
Item no.
6278684
Length
2000
Colour
Jet black; RAL 9005
GK-OTGRW
Item no.
6278680
Length
2000
Colour
Pure white; RAL 9010
GK-OTGCW
Item no.
6278681
Length
2000
Colour
Cream; RAL 9001
GK-OTGLGR
Item no.
6278682
Length
2000
Colour
Light grey; RAL 7035
GK-OTGGR
Item no.
6278686
Length
2000
Colour
Stone grey; RAL 7030
