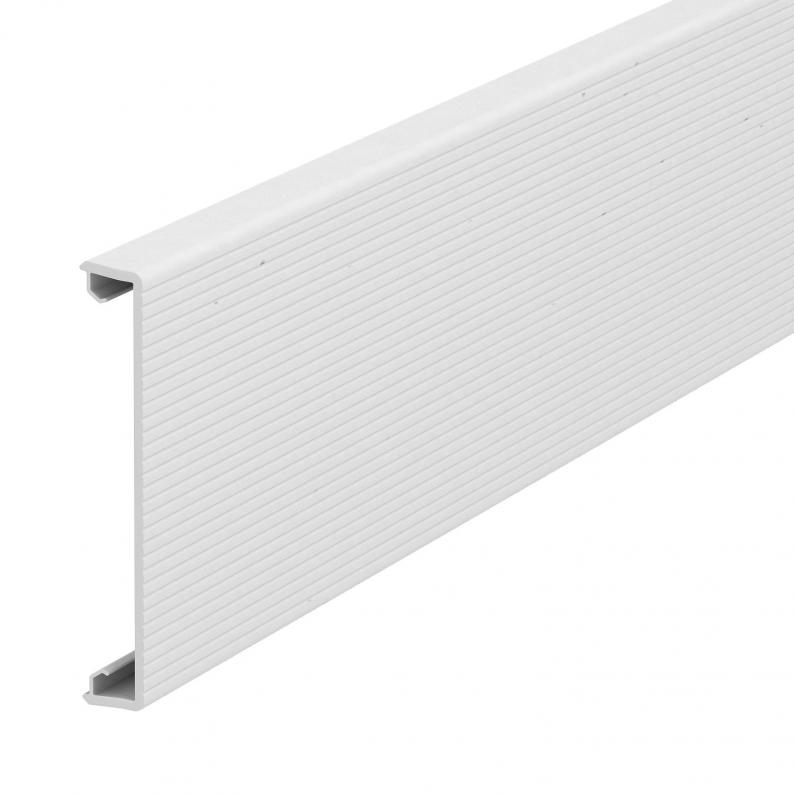

Plastic trunking cover, fluted

Plastic trunking cover, fluted

Type GK-OTKRW | Item no. 6278780 | EAN 4012195666530

Show all variants
Item no. / Type
Length
Colour

Smallest selling unit: 2 m

DescriptionTechnical dataDownloadsVariants

Description

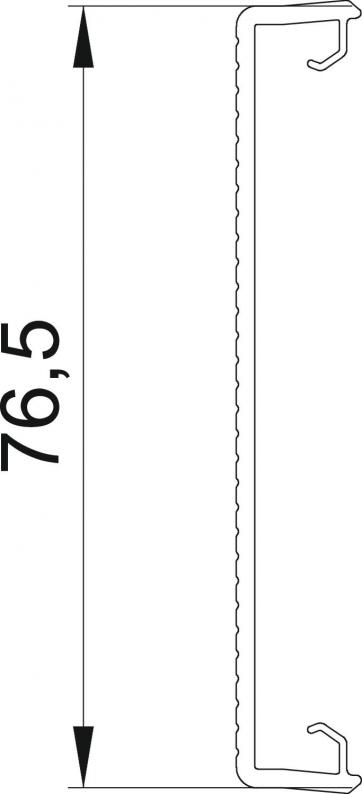

Fluted trunking cover, for closing device installation trunking with 76.5 mm system opening.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length2000 mm
Width76,5 mm
Height12 mm

Technical data

Halogen-freeno
Protective filmno
Protection ratingIP30
Cover mounting typeInternal
Protection rating IK codeIK08
Version forProfiled
Permitted temperature range, max.60 °C
Permitted temperature range, min.-15 °C
Dimension80x2000mm
MaterialPolyvinylchloride
ColourPure white; RAL 9010
Antibacterial treatmentno
CO2 Footprint (GWP) Cradle-to-Gate0,5657 kg CO2e / 1 Meter

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (2)
Declarations (4)
Certificates (2)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

Colour
GK-OTKRW
Item no.
6278780
Length
2000
Colour
Pure white; RAL 9010
GK-OTKCW
Item no.
6278781
Length
2000
Colour
Cream; RAL 9001
GK-OTKLGR
Item no.
6278782
Length
2000
Colour
Light grey; RAL 7035
