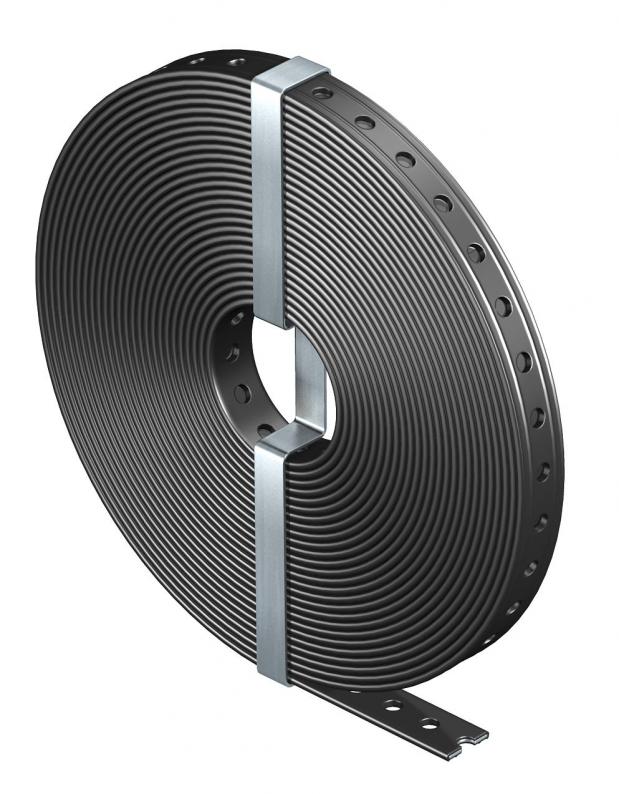

Perforated steel strap, plastic-coated
Type 5055 L PE II 19 | Item no. 1473271 | EAN 4012195139454
Item no. / Type
Dimension A
Hole diameter
Dimension
Colour
Black
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description
Perforated steel strap with PE plastic jacketing.
Technical data

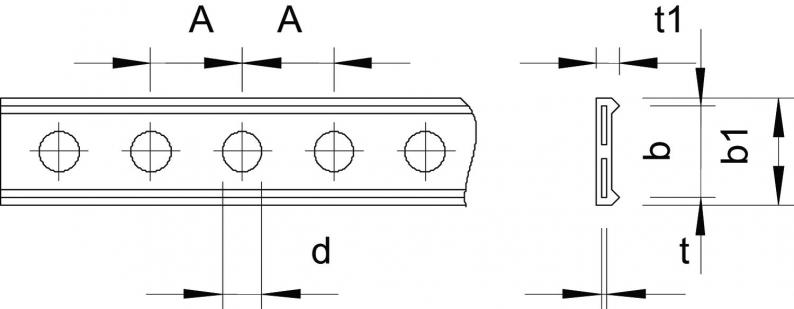

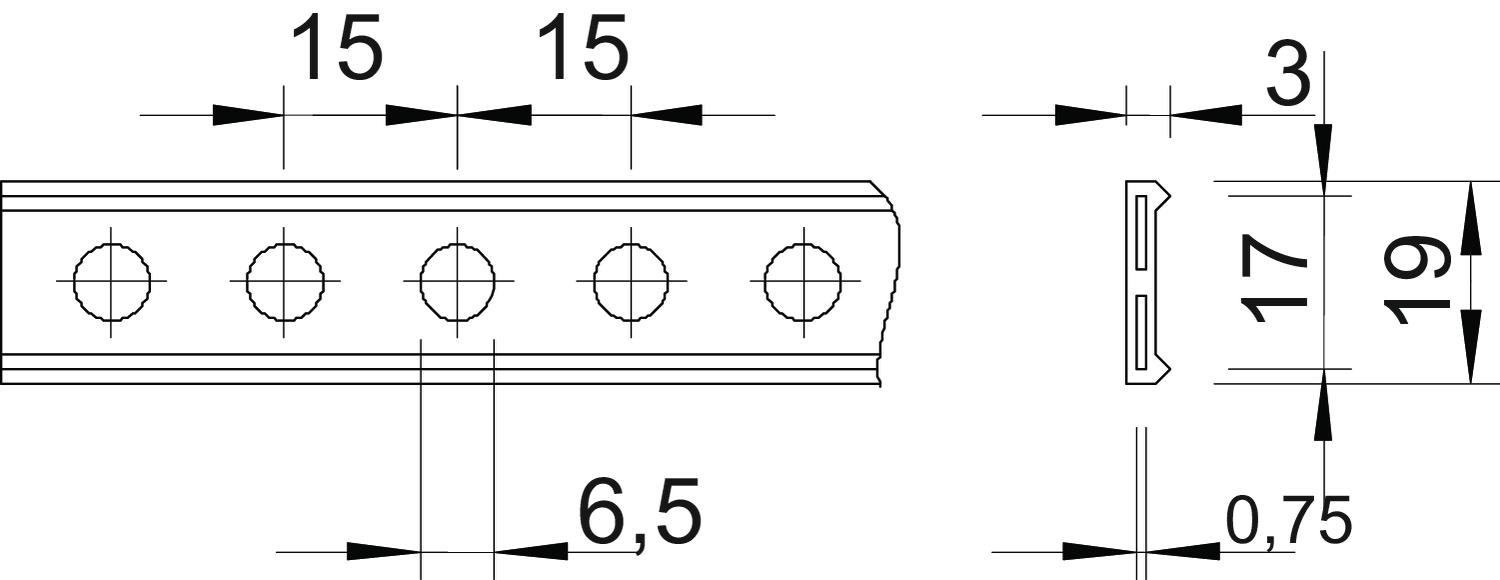

Dimensions
| Dimension A | 15 mm |
|---|---|
| Dimension d | 6,5 mm |
| Dimension t | 0,75 mm |
| Dimension b | 17 mm |
| Dimension b1 | 19 mm |
| Dimension t1 (mm) | 3 |
Technical data
| Halogen-free | yes |
|---|---|
| Size | II |
| Perforation | Round |
| With perforation | yes |
| Hole diameter | 6,5 mm |
| Dimension | 19 x 3 |
| per rolls | 10 |
| Version for | Perforated |
| Dimension | 19x3mm |
| Surface | Strip galvanized / plastic coated |
| Material | Steel |
| Colour | Black |
| Type of band | Straight |
| In the holder | no |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Dimension A
Hole diameter
Dimension
Colour
Item no.
MZ024 PE l 14
9
5,1
13,5 x 2
Black
1475902
MZ024 PE II 19
15
6,5
18,5 x 2
Black
1475904
MZ024 PE III 27
16
8,5
27 x 3
Black
1475907
5055 L PE II 19
15
6,5
19 x 3
Black
1473271
Dimension A
Hole diameter
Dimension
MZ024 PE l 14
Item no.
1475902
Dimension A
9
Hole diameter
5,1
Dimension
13,5 x 2
Colour
Black
MZ024 PE II 19
Item no.
1475904
Dimension A
15
Hole diameter
6,5
Dimension
18,5 x 2
Colour
Black
MZ024 PE III 27
Item no.
1475907
Dimension A
16
Hole diameter
8,5
Dimension
27 x 3
Colour
Black
5055 L PE II 19
Item no.
1473271
Dimension A
15
Hole diameter
6,5
Dimension
19 x 3
Colour
Black
