Partition GK-TW70
Type GK-TW70 | Item no. 6274900 | EAN 4012195658122
Item no. / Type
6274900 / GK-TW70
Suitable for duct depth
70
Smallest selling unit: 2 m
2m
Description

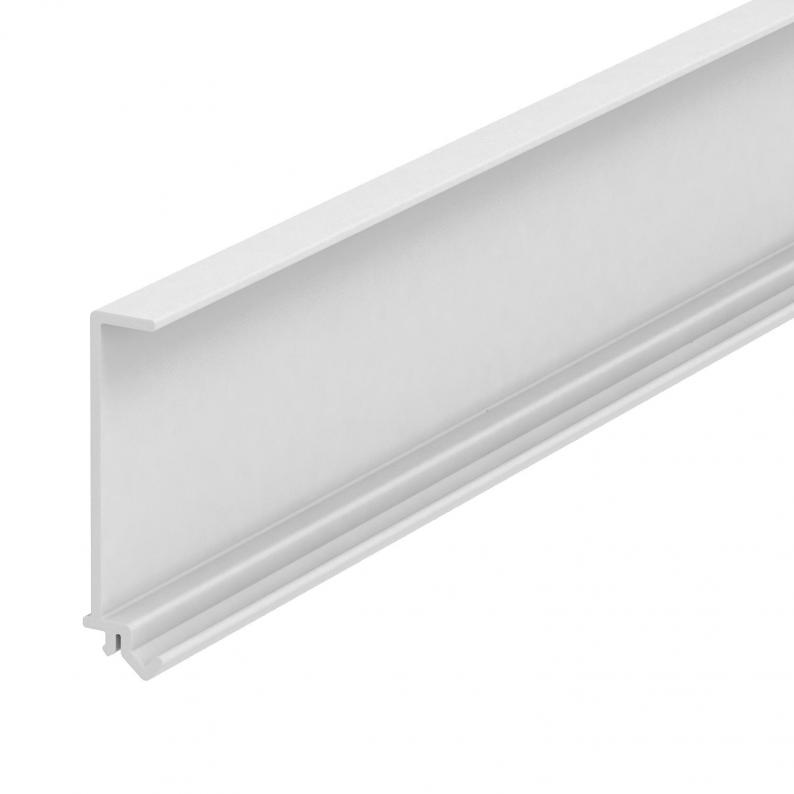

Partition for mounting in Rapid 80 GK, GA and Rapid IBIS device installation trunking or ISS service poles for installing cables of different voltage levels.
Technical data
Dimensions
| Length | 2000 mm |
|---|---|
| Width | 44,5 mm |
| Height | 10 mm |
Technical data
| Halogen-free | no |
|---|---|
| Suitable for duct depth | 70 |
| Protection rating | IP30 |
| Protection rating IK code | IK08 |
| Fastening type | Plug-in |
| Version for | Single |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -15 °C |
| Dimension | 70x2000mm |
| Material | Polyvinylchloride |
| Colour | Light grey; RAL 7035 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3733 kg CO2e / 1 Meter |
