Multiple sealing insert, metric
Type 107 C VM 32 2x8
|Item no. 2029693
|EAN 4012195036319
Item no. / Type
2029693 / 107 C VM 32 2x8
Dimension D1
25,1 mm
Number of drill holes
2
Hole diameter
8 mm
Smallest selling unit: 25 piece
25piece
piece
Description
Use to insert multiple thin cables in the V-TEC VM cable glands, is replaced with the simple sealing ring of the cable gland.
Technical data

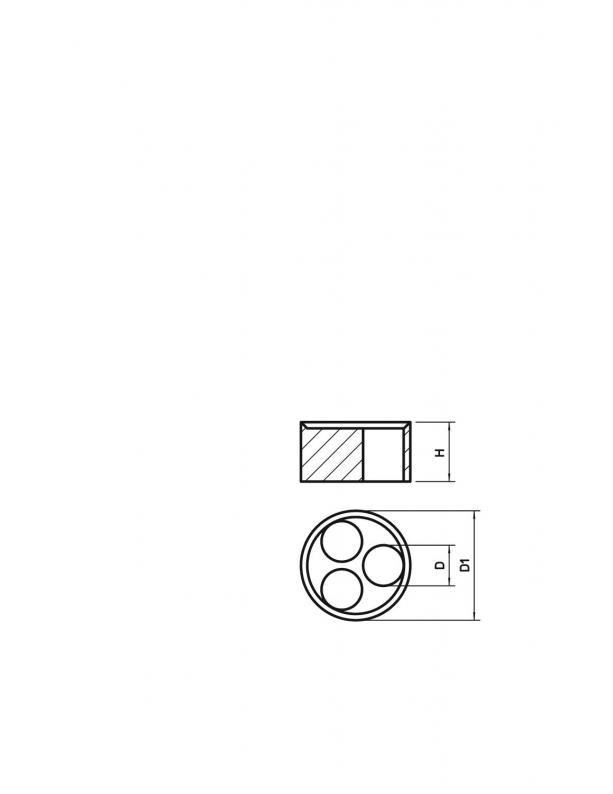

Dimensions
| Dimension D1 | 25,1 mm |
|---|---|
| Dimension H | 13,4 mm |
| Dimension D | 8 mm |
Technical data
| Protection rating | IP68 |
|---|---|
| Number of drill holes | 2 |
| Inner diameter | 8 mm |
| External diameter | 25,1 mm |
| Hole diameter | 8 mm |
| Suitable for metric thread dimension | 32 |
| Version for | Miscellaneous |
| Thickness | 13,4 mm |
| Dimension | VM32,2X8 |
| Material | Rubber mixture |
| Colour | Black |
Environmental Data
0,0139 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0139 kg CO2e / 1 Piece |
|---|
