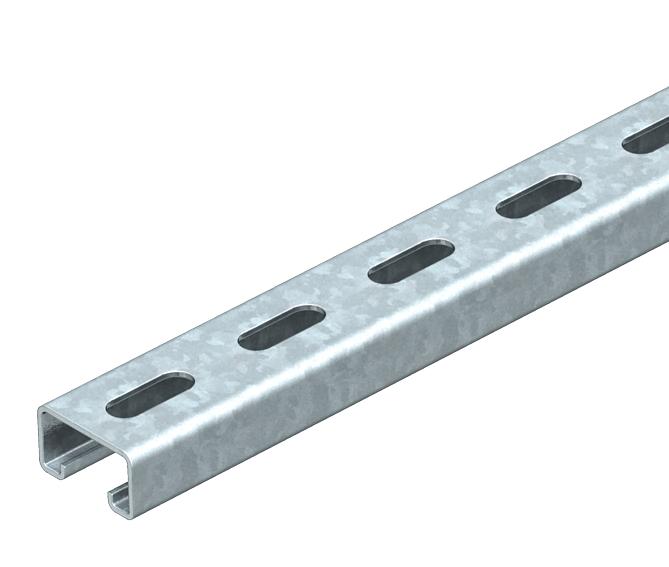

MS4121 mounting rail, slot 22 mm, FT, perforated

MS4121 mounting rail, slot 22 mm, FT, perforated

Type MS4121P2000FT | Item no. 1122923 | EAN 4012195697541

Show all variants
Item no. / Type
Length
Width
Height
Material thickness
Surface
Hot-dip galvanised

Smallest selling unit: 2 m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 22 mm
  • Clamp clip for C profile rail, slot width 18–22 mm
  • Function maintenance class E30
  • Function maintenance class E90
  • CO₂ footprint (PCF)

Technical data

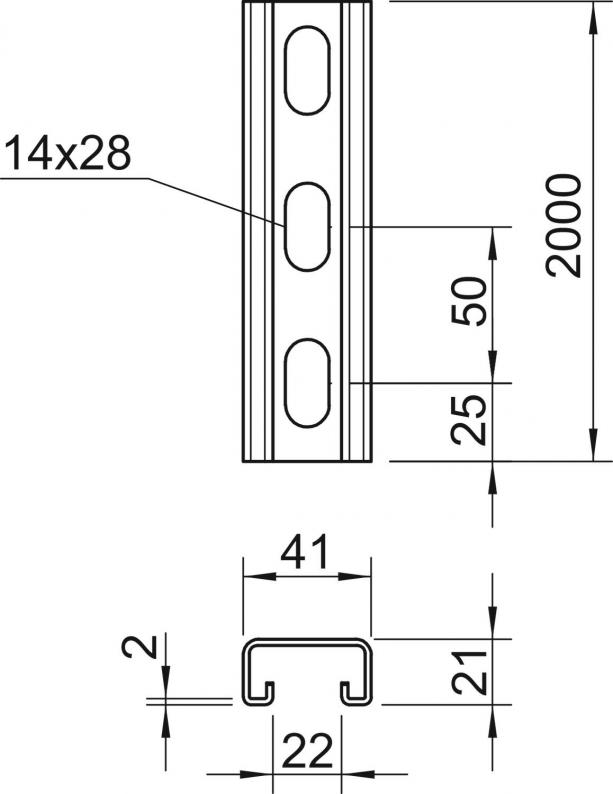

Dimensions

Length2000 mm
Width41 mm
Height21 mm
Dimension L2000 mm

Technical data

Maintain electrical functionsyes
Slot width22 mm
Material thickness2 mm
Static value A1,65 cm²
Static value ly0,95 cm⁴
Static value lz4,51 cm⁴
Static value Wy0,89 cm³
Static value Wz2,2 cm³
Hole size14x28 mm
Profile shapeC profile
Type of perforationPerforated back
Drill hole spacing, centre50 mm
With perforationyes
Breakableno
With toothingyes
Version forSingle profile
Dimension2000x41x21
SurfaceHot-dip galvanised
MaterialSteel
CO2 Footprint (GWP) Cradle-to-Gate3,1824 kg CO₂e / 1 Meter

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Product images (3)
3D data downloads (1)
Tender specifications (2)

Accessories

System accessories
Type
2056U 12 FT

Smallest selling unit: 100 piece

Type
2056U 22 FT

Smallest selling unit: 100 piece

Type
2056U 28 FT

Smallest selling unit: 100 piece

Variants

Length
MS4121P2000FT
Item no.
1122923
Length
2000
Width
41
Height
21
Material thickness
2
Surface
Hot-dip galvanised
MS4121P3000FT
Item no.
1122924
Length
3000
Width
41
Height
21
Material thickness
2
Surface
Hot-dip galvanised
