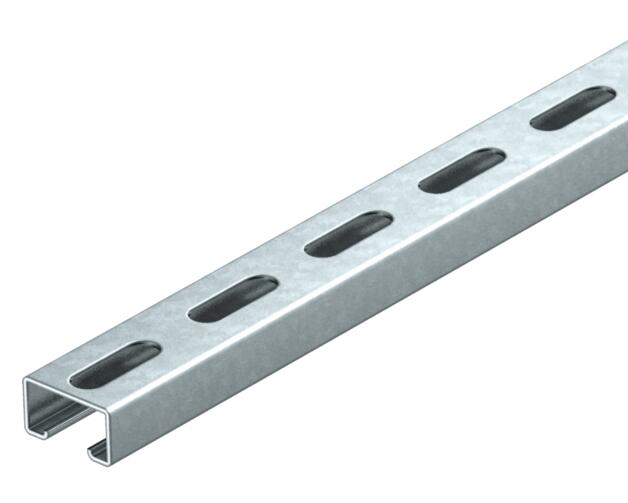

MS4022 mounting rail, heavy duty, slot 18 mm, FT, perforated

MS4022 mounting rail, heavy duty, slot 18 mm, FT, perforated

Type MS4022P2000FT
|
Item no. 1121979
|
EAN 4012195050230
Show all variants
Item no. / Type
1121979 / MS4022P2000FT
Surface
Hot-dip galvanised

Smallest selling unit: 2 m

m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 18 mm
  • Clamp clip for C profile rail, slot width 18–22 mm
  • Function maintenance class E30
  • Function maintenance class E90
  • CO₂ footprint (PCF)

Technical data

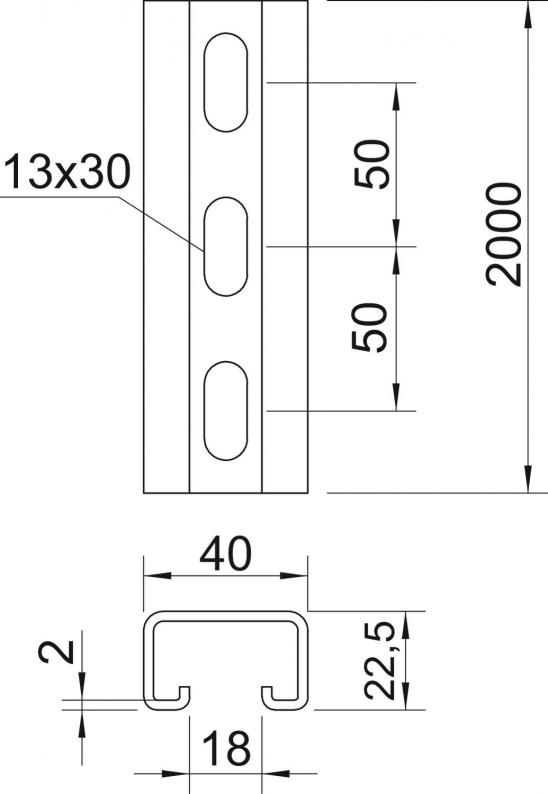

Dimensions

Length2000 mm
Width40 mm
Height22,5 mm
Dimension L2000 mm

Technical data

Maintain electrical functionsyes
Slot width18 mm
Material thickness2 mm
Static value A1,74 cm²
Static value ly1,18 cm⁴
Static value lz4,45 cm⁴
Static value Wy1,05 cm³
Static value Wz2,23 cm³
Profile shapeC profile
Type of perforationPerforated back
Drill hole spacing, centre50 mm
With perforationyes
Breakableno
With toothingno
Version forSingle profile
Dimension2000x40x22,5
SurfaceHot-dip galvanised
MaterialSteel
CO2 Footprint (GWP) Cradle-to-Gate3,3075 kg CO2e / 1 Meter

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Accessories

Mounting accessories
Type
2056U 12 FT

Smallest selling unit: 100 piece

piece

Type
2056U 22 FT

Smallest selling unit: 100 piece

piece

Type
2056U 28 FT

Smallest selling unit: 100 piece

piece

Variants

MS4022P2000FT
Item no.
1121979
Length
2000
Width
40
Height
22,5
Material thickness
2
Surface
Hot-dip galvanised
