Mounting plate FS
Type MP UNI FS | Item no. 7084773 | EAN 4012196146895
Item no. / Type
7084773 / MP UNI FS
Smallest selling unit: 1 piece
1piece
Description

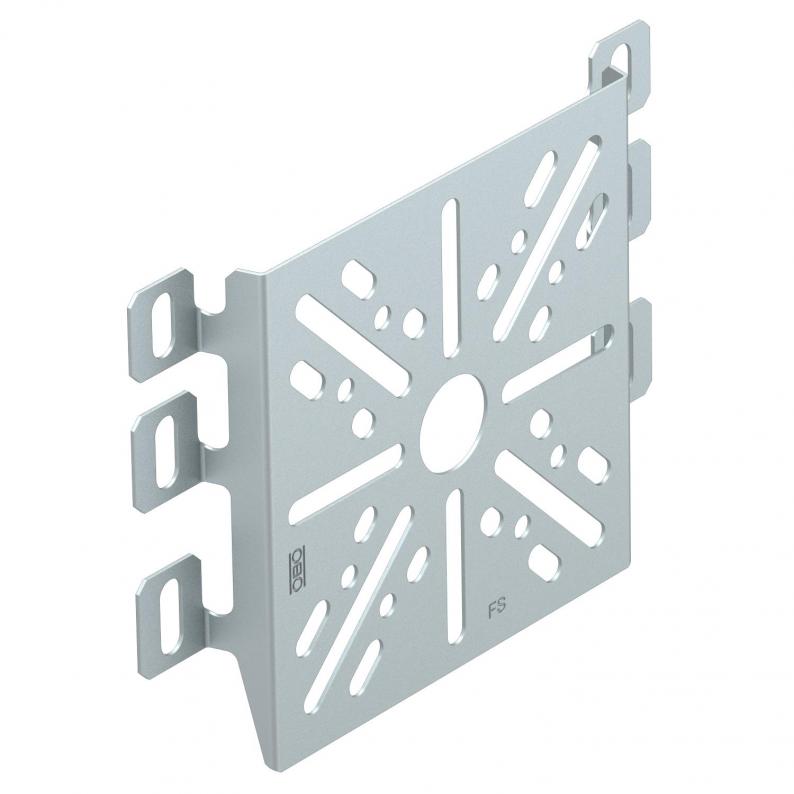

Mounting plate, for fastening on the side rail of cable support systems.
Please order the truss-head bolt, type FRSB 6 x 12, separately.
Technical data

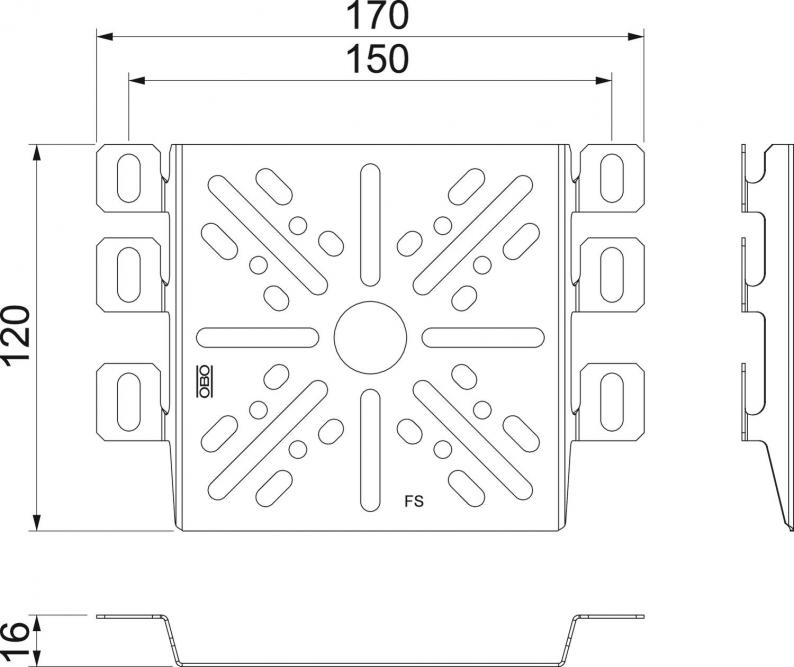

Dimensions
| Width | 170 mm |
|---|---|
| Height | 120 mm |
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Plate thickness | 1 mm |
| Fastening type | Screw fastening |
| Version for | Horizontal |
| Dimension | 170x120 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4193 kg CO2e / 1 Piece |
