Mesh cable tray GR-Magic® 55 FT

Mesh cable tray GR-Magic® 55 FT

Type GRM 55 50 FT | Item no. 6001415 | EAN 4012195430940

Show all variants
Item no. / Type
Length
Width
Height
Maintain electrical functions
Usable cross-section
Wire diameter

Smallest selling unit: 3 m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

Mesh cable tray with shaped connector of side height 55 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.

You can find detailed information regarding the UL classification in the respective certification.

No additional connection components are required for the mesh cable tray, it is simply interlocked. The grid width is 50 x 100 mm (exception: GRM 55/50 = 20 x 100 mm).

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Underwriters Laboratories Inc., USA
  • Underwriters Laboratories Inc., USA
  • RINA 1861, Ship Classification, Certification and Services
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Function maintenance class E30
  • Function maintenance class E60
  • Function maintenance class E90
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

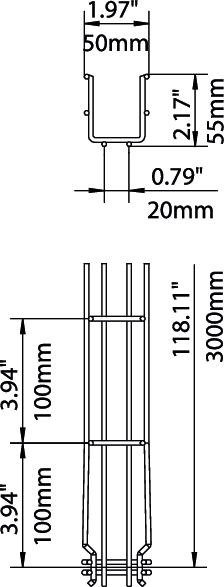

Dimensions

Length3000 mm
Width50 mm
Height55 mm
Dimension B52 mm
Dimension H58 mm

Technical data

Maintain electrical functionsyes
Connector versionIntegrated connector
Wide-span versionno
Usable cross-section16 cm²
Rustproof steel, pickledno
Usable cross-section1600 mm²
Integrated partitionWithout
Screwless connectoryes
Profile shapeU-shaped
Wire diameter3,9 mm
Dimension55x50x3000
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Fire protectionMaintenance of electrical function of cable-specific support structure
Load test type according to IEC 61537Type II
Type of connector, cable support systemClick fastening
CO2 Footprint (GWP) Cradle-to-Gate1,4752 kg CO2e / 1 Meter

Loads

Support spacing 2.0 m0,1 kN/m
Support spacing 2.5 m0,1 kN/m
Support spacing 1.0 m0,35 kN/m
Support spacing 1.5 m0,2 kN/m
Load diagram, GR-Magic mesh cable tray, type GRM 55

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (9)
Declarations (4)
Certificates (6)
Instructions and Aid (4)
Product images (3)
3D data downloads (1)
Tender specifications (2)

Accessories

System accessories
Mounting accessories
Type
DGRR 50 FT

Smallest selling unit: 3 m

Item no. 6016723

Corner connector FT
Type
GEV 36 FT

Smallest selling unit: 20 piece

Variants

Width
Maintain electrical functions
Usable cross-section
Wire diameter
GRM 55 50 FT
Item no.
6001415
Length
3000
Width
50
Height
55
Maintain electrical functions
yes
Usable cross-section
16
Wire diameter
3,9
GRM 55 100 FT
Item no.
6001416
Length
3000
Width
100
Height
55
Maintain electrical functions
yes
Usable cross-section
40
Wire diameter
3,9
GRM 55 150 FT
Item no.
6001418
Length
3000
Width
150
Height
55
Maintain electrical functions
yes
Usable cross-section
63
Wire diameter
3,9
GRM 55 200 FT
Item no.
6001420
Length
3000
Width
200
Height
55
Maintain electrical functions
yes
Usable cross-section
87
Wire diameter
3,9
GRM 55 200 4.8FT
Item no.
6001421
Length
3000
Width
200
Height
55
Maintain electrical functions
yes
Usable cross-section
87
Wire diameter
4,8
GRM 55 300 FT
Item no.
6001424
Length
3000
Width
300
Height
55
Maintain electrical functions
yes
Usable cross-section
129
Wire diameter
4,8
GRM 55 400 FT
Item no.
6001428
Length
3000
Width
400
Height
55
Maintain electrical functions
yes
Usable cross-section
175
Wire diameter
4,8
GRM 55 500 FT
Item no.
6001432
Length
3000
Width
500
Height
55
Maintain electrical functions
no
Usable cross-section
220
Wire diameter
4,8
GRM 55 600 FT
Item no.
6001436
Length
3000
Width
600
Height
55
Maintain electrical functions
no
Usable cross-section
265
Wire diameter
4,8
