Mesh cable tray GR-Magic® 35 FT

Mesh cable tray GR-Magic® 35 FT

Type GRM 35 50 FT | Item no. 6000069 | EAN 4012195624820

Show all variants
Item no. / Type
Length
Width
Height
Usable cross-section
Wire diameter
Maintain electrical functions
no

Smallest selling unit: 3 m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

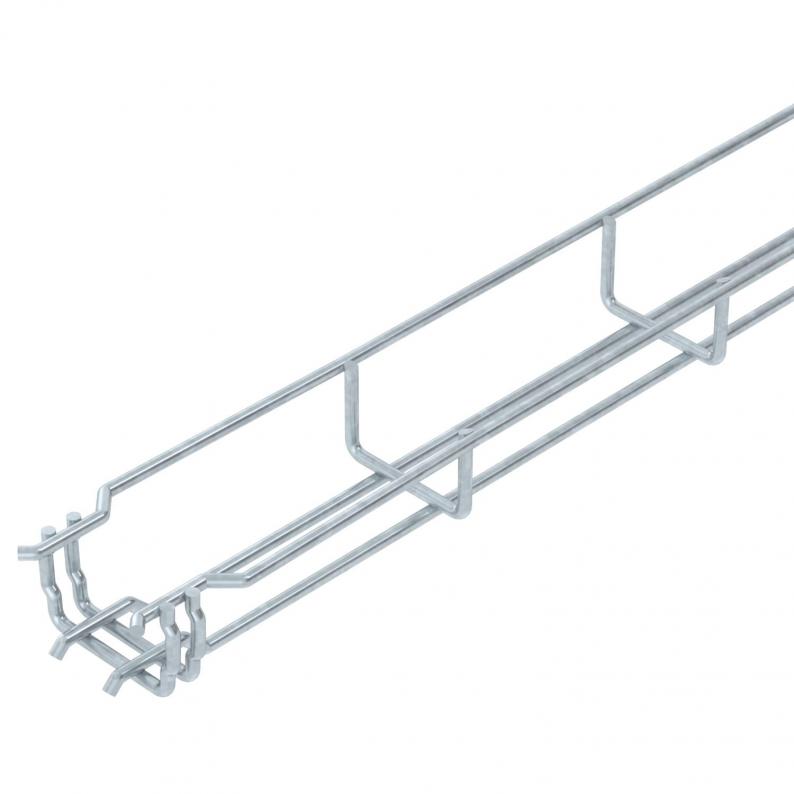

Mesh cable tray with shaped connector of side height 35 mm.

Magnetic shield insulation without cover 15 dB, with cover 25 dB.

No additional connection components are required for the mesh cable tray, it is simply interlocked. The grid width is 50 x 100 mm (exception: GRM 35/50 = 20 x 100 mm).

  • RINA 1861, Ship Classification, Certification and Services
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

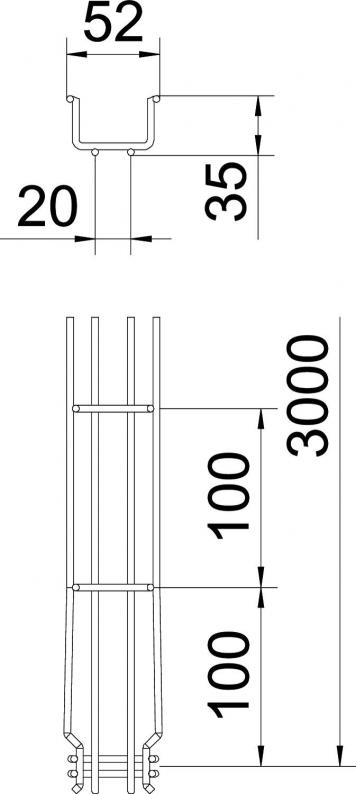

Dimensions

Length3000 mm
Width50 mm
Height35 mm
Dimension B52 mm

Technical data

Maintain electrical functionsno
Connector versionIntegrated connector
Wide-span versionno
Usable cross-section9,4 cm²
Rustproof steel, pickledno
Usable cross-section1750 mm²
Integrated partitionWithout
Screwless connectoryes
Profile shapeU-shaped
Wire diameter3,9 mm
Dimension35x50x3000
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Load test type according to IEC 61537Type II
Type of connector, cable support systemClick fastening
CO2 Footprint (GWP) Cradle-to-Gate1,0255 kg CO2e / 1 Meter

Loads

Support spacing 2.0 m0,1 kN/m
Support spacing 1.0 m0,25 kN/m
Support spacing 1.5 m0,11 kN/m
Load diagram, GR-Magic mesh cable tray, type GRM 35

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (6)
Declarations (5)
Certificates (3)
Instructions and Aid (4)
Product images (3)
3D data downloads (1)
Tender specifications (2)

Accessories

System accessories
Mounting accessories
Type
DGRR 50 FT

Smallest selling unit: 3 m

Item no. 6016723

Corner connector FT
Type
GEV 36 FT

Smallest selling unit: 20 piece

Variants

Width
Usable cross-section
Wire diameter
GRM 35 50 FT
Item no.
6000069
Length
3000
Width
50
Height
35
Maintain electrical functions
no
Usable cross-section
9,4
Wire diameter
3,9
GRM 35 100 FT
Item no.
6000071
Length
3000
Width
100
Height
35
Maintain electrical functions
no
Usable cross-section
23
Wire diameter
3,9
GRM 35 150 FT
Item no.
6000072
Length
3000
Width
150
Height
35
Maintain electrical functions
no
Usable cross-section
36,6
Wire diameter
3,9
GRM 35 200 FT
Item no.
6000073
Length
3000
Width
200
Height
35
Maintain electrical functions
no
Usable cross-section
50,1
Wire diameter
3,9

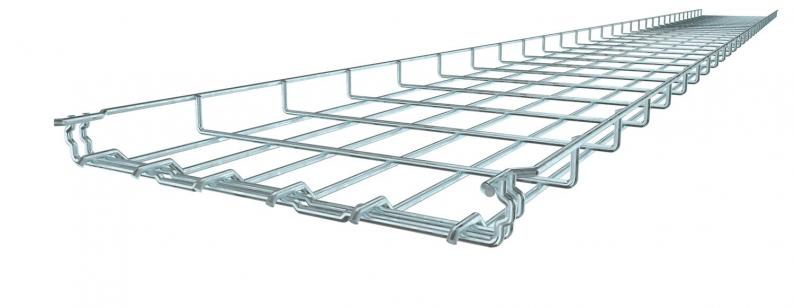

GRM 35 300 FT
Item no.
6000075
Length
3000
Width
300
Height
35
Maintain electrical functions
no
Usable cross-section
71,3
Wire diameter
4,8
