Mesh cable tray GR-Magic® 105 A2

Mesh cable tray GR-Magic® 105 A2

Type GRM 105 300 A2 | Item no. 6002460 | EAN 4012195149644

Show all variants
Item no. / Type
Length
Width
Height
Usable cross-section
Wire diameter
Maintain electrical functions
no

Smallest selling unit: 3 m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

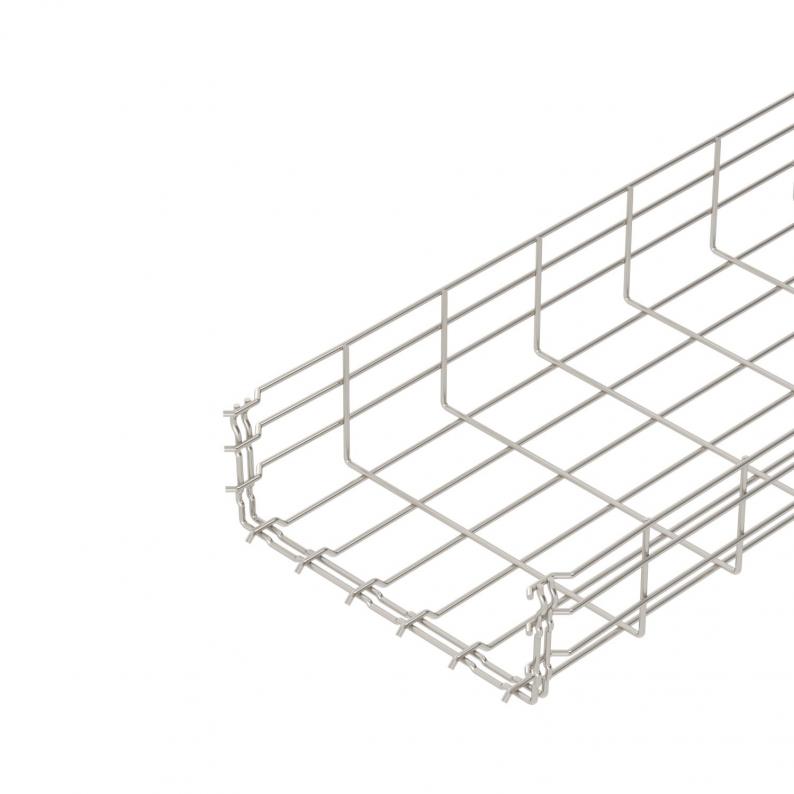

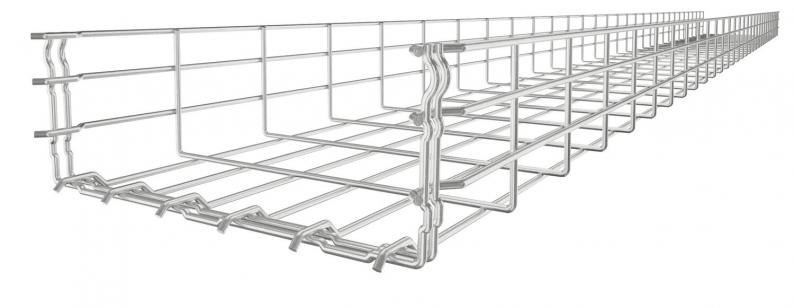

Mesh cable tray with shaped connector of side height 105 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.

No additional connection components are required for the mesh cable tray, it is simply interlocked. The grid width is 50 x 100 mm.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • RINA 1861, Ship Classification, Certification and Services
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

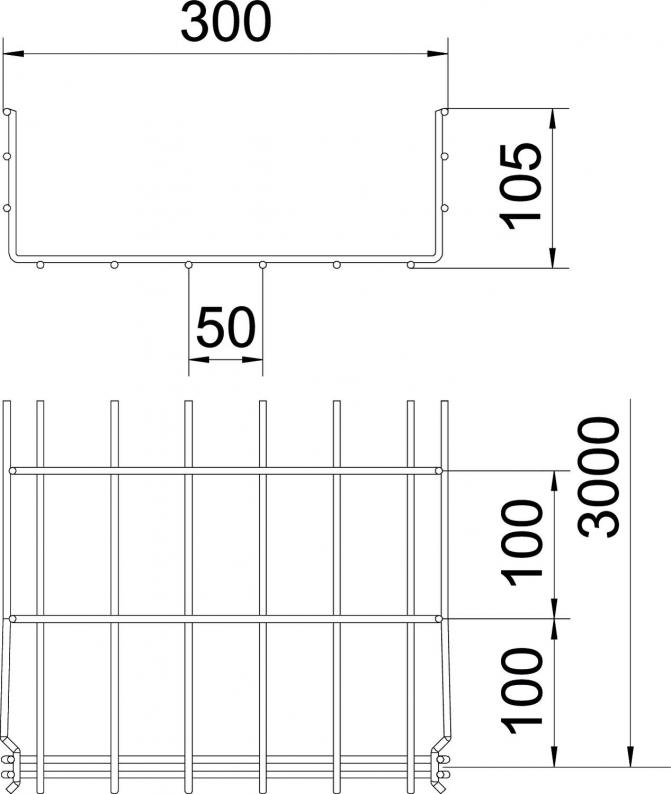

Dimensions

Length3000 mm
Width300 mm
Height105 mm
Dimension B300 mm
Dimension H108 mm

Technical data

Maintain electrical functionsno
Connector versionIntegrated connector
Wide-span versionno
Usable cross-section268 cm²
Rustproof steel, pickledyes
Usable cross-section26800 mm²
Integrated partitionWithout
Screwless connectoryes
Profile shapeU-shaped
Wire diameter4,8 mm
Dimension105x300x3000
SurfaceBright, treated
MaterialStainless steel 1.4301
Colourstainless steel
Load test type according to IEC 61537Type II
Type of connector, cable support systemClick fastening
CO2 Footprint (GWP) Cradle-to-Gate11,7853 kg CO2e / 1 Meter

Loads

Support spacing 2.0 m0,53 kN/m
Support spacing 2.5 m0,38 kN/m
Support spacing 1.0 m1,1 kN/m
Support spacing 3.0 m0,3 kN/m
Support spacing 1.5 m0,75 kN/m
Load diagram, mesh cable tray, type GRM 105

Support width in m

Rail bend in mm at permitted kN/m

Permitted cable tray/ladder load in kN/m without man load

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (7)
Declarations (4)
Certificates (3)
Instructions and Aid (4)
Product images (3)
3D data downloads (1)
Tender specifications (2)

Accessories

System accessories
Mounting accessories
Type
DGRR 300 A2

Smallest selling unit: 3 m

Item no. 6016731

Corner connector A2
Type
GEV 36 A2

Smallest selling unit: 20 piece

Variants

Width
Usable cross-section
GRM 105 300 A2
Item no.
6002460
Length
3000
Width
300
Height
105
Maintain electrical functions
no
Usable cross-section
268
Wire diameter
4,8
GRM 105 600 A2
Item no.
6002469
Length
3000
Width
600
Height
105
Maintain electrical functions
no
Usable cross-section
554
Wire diameter
4,8
