Mesh cable tray connector FT
Type K 11 262 FT | Item no. 6015107 | EAN 4012196359172
Item no. / Type
6015107 / K 11 262 FT
Surface
Hot-dip galvanised
Material
Steel
Smallest selling unit: 25 piece
25piece
Description
Screwed version of joint connector for mesh cable trays.
Including screw of type FRS M6 x 20.
Technical data

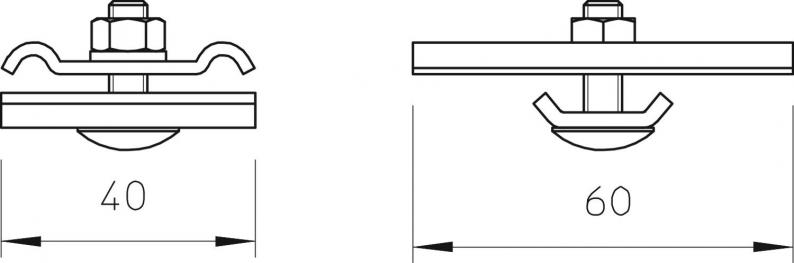

Dimensions
| Length | 60 mm |
|---|---|
| Width | 40 mm |
| Height | 24 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Suitable for mesh cable tray | yes |
| Suitable for cable ladder | no |
| Suitable for cable tray | no |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | no |
| Dimension | 60 x 40 |
| Suitable for mesh cable tray wire, max. | 4,9 mm |
| Suitable for mesh cable tray wire, min. | 3,9 mm |
| Version for | Straight connector |
| Connection type | Screw connector |
| Dimension | 60x40 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1451 kg CO2e / 1 Piece |
