Magic cross-over 60 FT

Magic cross-over 60 FT

Type RKM 610 FT | Item no. 7027021 | EAN 4012195927471

Show all variants
Item no. / Type
Width

This item is a discontinued product!

You can find the successor product here.

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

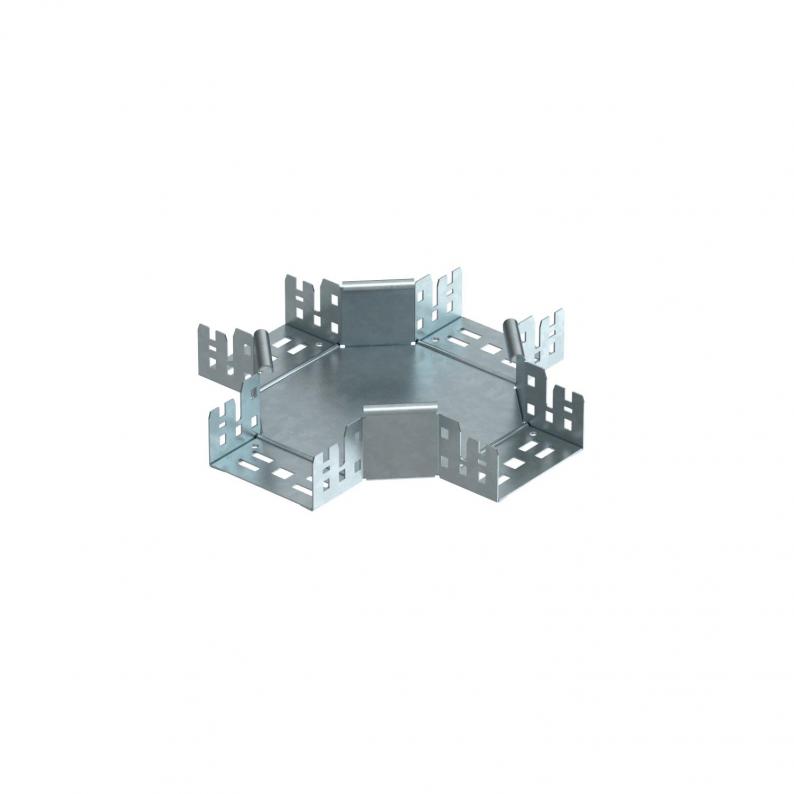

Cross-over with quick connector system. For all cable tray types of 60 mm side height.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 60 mm
  • BET-tested to DIN EN 61537

Technical data

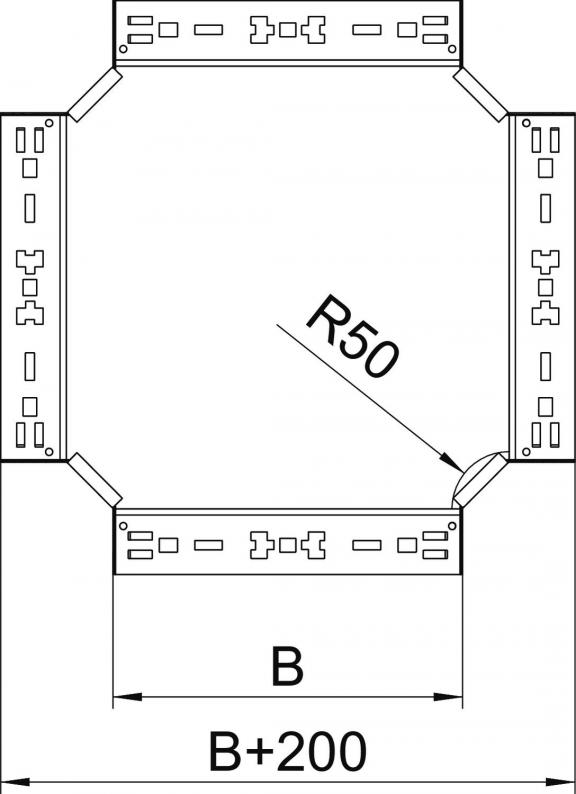

Dimensions

Width100 mm
Height60 mm
Dimension B100 mm

Technical data

Maintain electrical functionsyes
Connector versionIntegrated connector
Wide-span versionno
Rustproof steel, pickledno
Plate thickness1,25 mm
Material thickness, floor plate1,25 mm
Bend (angle)90°
Change of directionHorizontal
Rail thickness1,25 mm
Dimension60x100
SurfaceHot-dip galvanised
MaterialSteel
Type of connector, cable support systemClick fastening

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

Width
RKM 610 FT
Item no.
7027021
Width
100
RKM 620 FT
Item no.
7027025
Width
200
RKM 630 FT
Item no.
7027027
Width
300
RKM 640 FT
Item no.
7027029
Width
400
RKM 650 FT
Item no.
7027031
Width
500
RKM 660 FT
Item no.
7027033
Width
600
