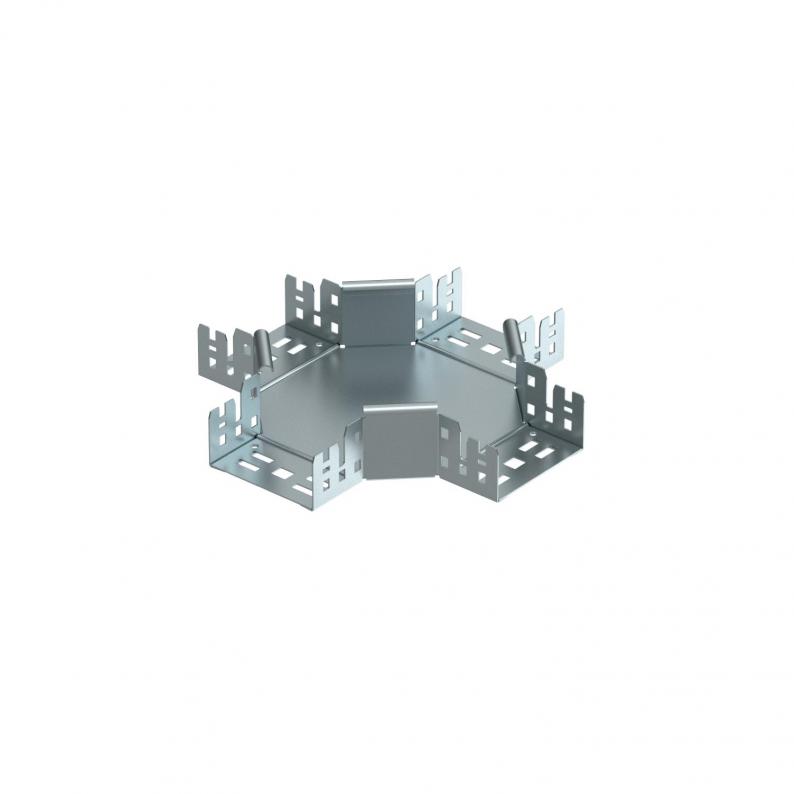

Magic cross-over 60 FS

Magic cross-over 60 FS

Type RKM 610 FS | Item no. 7027001 | EAN 4012195927389

Show all variants
Item no. / Type
Width

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

Cross-over with quick connector system. For all cable tray types of 60 mm side height.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 60 mm
  • BET-tested to DIN EN 61537
  • CO₂ footprint (PCF)

Technical data

Dimensions

Width100 mm
Height60 mm
Dimension B100 mm

Technical data

Maintain electrical functionsyes
Connector versionIntegrated connector
Wide-span versionno
Rustproof steel, pickledno
Plate thickness1,25 mm
NATO hole patternno
Material thickness, floor plate1,25 mm
Bend (angle)90°
Change of directionHorizontal
Rail thickness1,25 mm
Dimension60x100
SurfaceStrip galvanized
MaterialSteel
Colourzinc
Fire protectionUse of fire protection ceilings
Type of connector, cable support systemClick fastening
CO2 Footprint (GWP) Cradle-to-Gate3,8199 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

Width
RKM 610 FS
Item no.
7027001
Width
100
RKM 615 FS
Item no.
7027003
Width
150
RKM 620 FS
Item no.
7027005
Width
200
RKM 630 FS
Item no.
7027007
Width
300
RKM 640 FS
Item no.
7027009
Width
400
RKM 650 FS
Item no.
7027011
Width
500
RKM 660 FS
Item no.
7027013
Width
600
