Magic add-on tee 35 FS
Type RAAM 310 FS | Item no. 6041020 | EAN 4012195881353
Item no. / Type
Width
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
Description

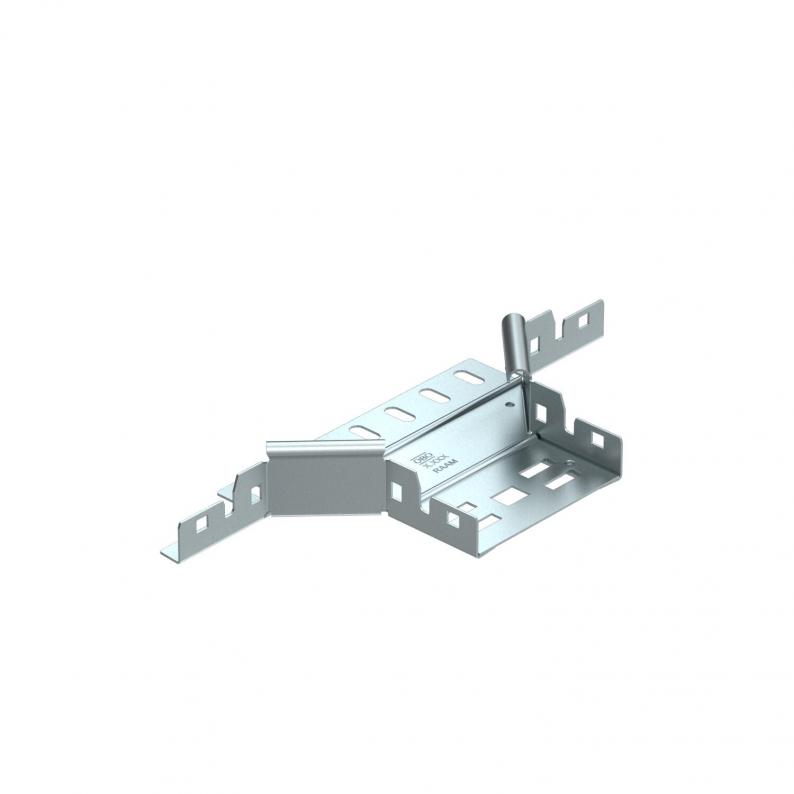

Add-on tee with quick connector system. For all cable tray types of 35 mm side height.
Technical data
Dimensions
| Width | 100 mm |
|---|---|
| Height | 35 mm |
| Dimension B | 100 mm |
| Dimension R | 50 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Integrated connector |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 1,25 mm |
| NATO hole pattern | no |
| Material thickness, floor plate | 1,25 mm |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Rail thickness | 1,25 mm |
| Dimension | 35x100 |
| Surface | Strip galvanized |
| Material | Steel |
| Type of connector, cable support system | Click fastening |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Item no.
RAAM 310 FS
100
6041020
RAAM 320 FS
200
6041022
RAAM 330 FS
300
6041024
Width
RAAM 310 FS
Item no.
6041020
Width
100
RAAM 320 FS
Item no.
6041022
Width
200
RAAM 330 FS
Item no.
6041024
Width
300
