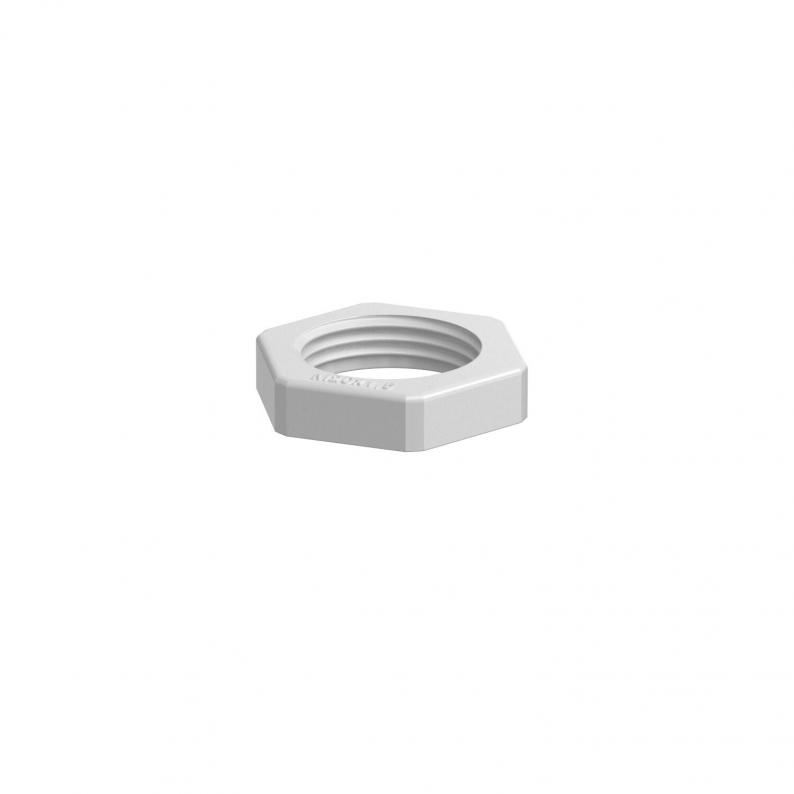

Locknut, metric thread
Type 116 M20 LGR PS | Item no. 2049538 | EAN 4012195153313
Item no. / Type
2049538 / 116 M20 LGR PS
Thread
M20 x 1,5
WAF
26
Smallest selling unit: 100 piece
100piece
Description
Locknut to DIN 46319, with metric thread IEC 423.
Note: Only tighten polystyrene cable glands lightly due to the risk of stress crack formation.
Note: Only tighten polystyrene cable glands lightly due to the risk of stress crack formation.
Technical data
Technical data
| Impact-resistant | yes |
|---|---|
| Halogen-free | yes |
| Fibre-glass reinforced | no |
| Thread | M20 x 1,5 |
| Thread type | Metric |
| WAF | 26 |
| Nominal thread size metric/PG | 20 |
| Dimension | M20 |
| Material | Polystyrene |
| Colour | Light grey; RAL 7035 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0067 kg CO2e / 1 Piece |

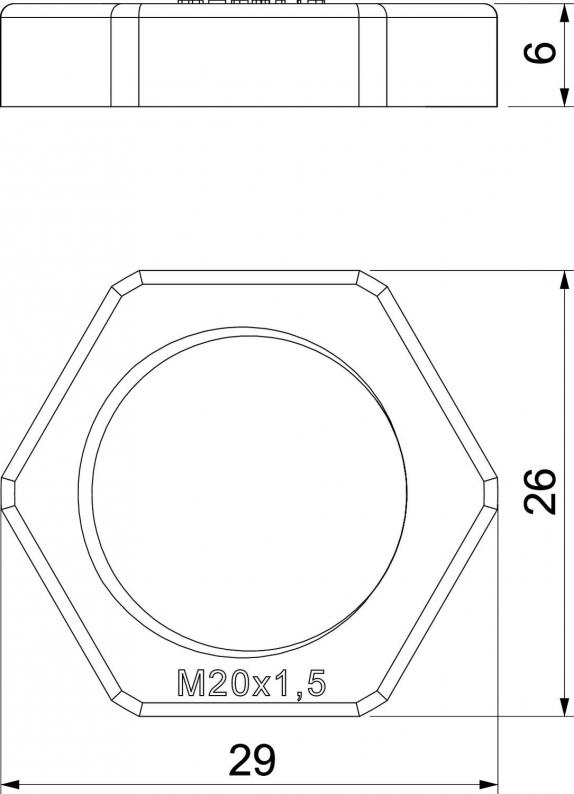

Dimensions
| Dimension L | 6 mm |
|---|---|
| Dimension E | 29 mm |
