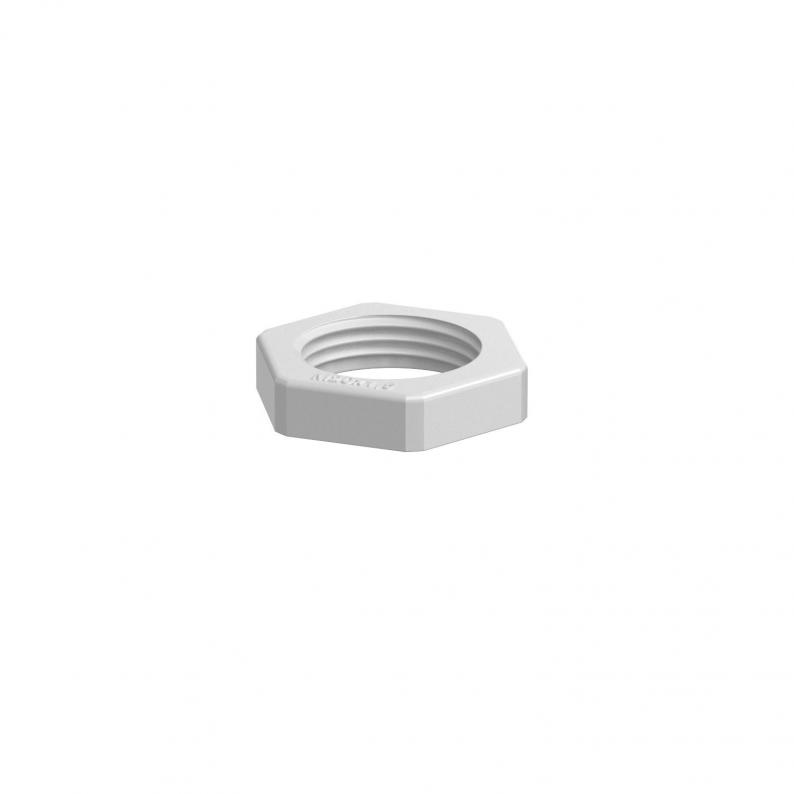

Locknut, metric thread, light grey
Type 116 M20 LGR PA
Item no. 2048922
EAN 4012195944539



Item no. / Type
2048922 / 116 M20 LGR PA
Thread
M20 x 1,5
WAF
26
Smallest selling unit: 100 piece
100piece
piece
Description
Locknut to DIN 46319, with metric thread IEC 423.
To prevent damage caused by differences in material behaviour, avoid using a mix of materials.
Use products made from polyamide (cable glands) exclusively with polyamide accessory parts (e.g. locknuts, reducers, expansions, etc.). Use products made from polystyrene exclusively with polystyrene accessory parts.
To prevent damage caused by differences in material behaviour, avoid using a mix of materials.
Use products made from polyamide (cable glands) exclusively with polyamide accessory parts (e.g. locknuts, reducers, expansions, etc.). Use products made from polystyrene exclusively with polystyrene accessory parts.
Technical data
Technical data
| Impact-resistant | no |
|---|---|
| Halogen-free | yes |
| Fibre-glass reinforced | no |
| Thread | M20 x 1,5 |
| Thread type | Metric |
| WAF | 26 |
| Nominal thread size metric/PG | 20 |
| ROHS-conformant | yes |
| Dimension | M20 |
| Material | Polyamide |
| Colour | Light grey; RAL 7035 |
| Product series | 116 |

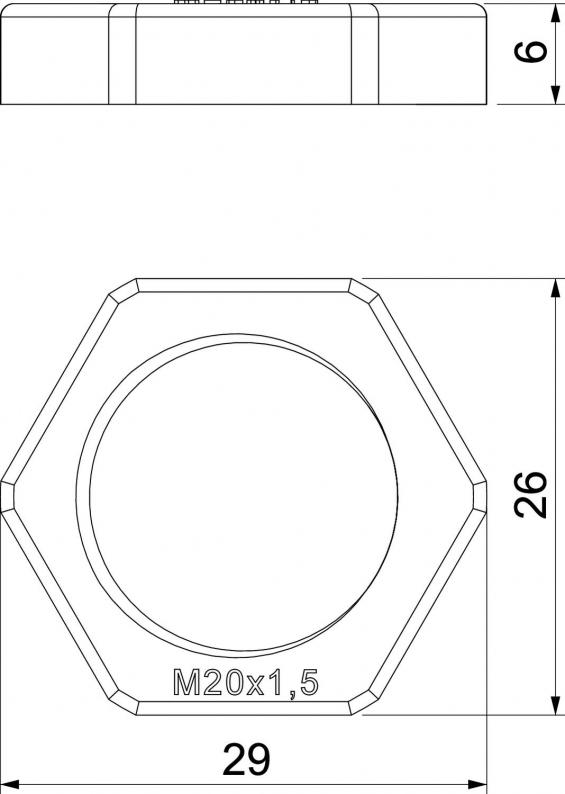

Dimensions
| Dimension L | 6 mm |
|---|---|
| Dimension E | 29 mm |
Environmental Data
0,0105 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging without plastic | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0105 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,0105 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
