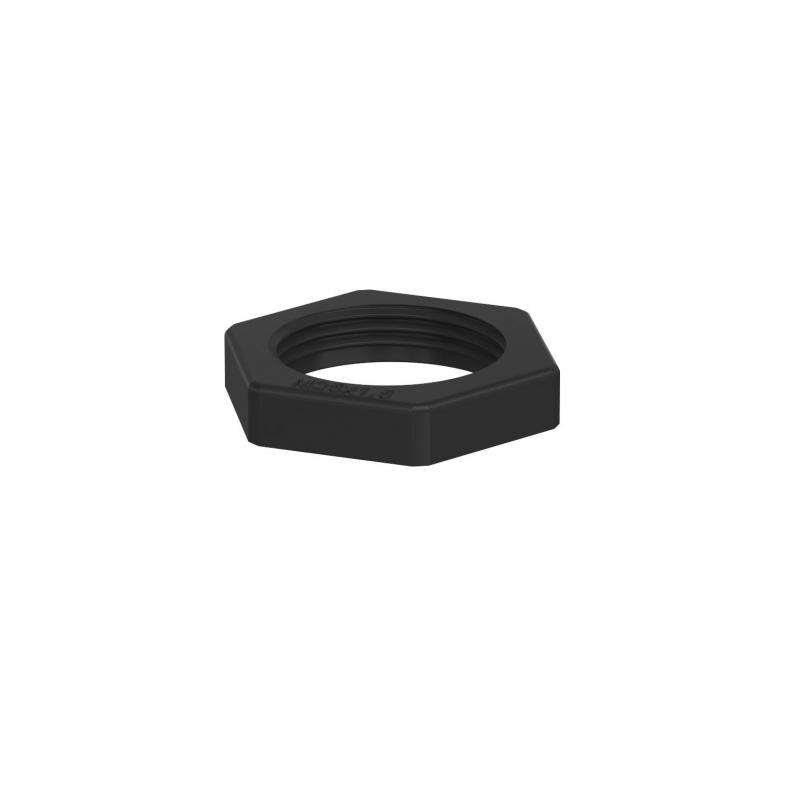

Locknut, metric thread, black
Type 116 M25 SW PA | Item no. 2049090 | EAN 4012195095538
Item no. / Type
Thread
WAF
Smallest selling unit: 100 piece
100piece
Description
Locknut DIN 46319, with metric thread IEC 423.
Technical data
Technical data
| Impact-resistant | no |
|---|---|
| Halogen-free | yes |
| Fibre-glass reinforced | no |
| Thread | M25 x 1,5 |
| Thread type | Metric |
| WAF | 32 |
| Nominal thread size metric/PG | 25 |
| Dimension | M25 |
| Material | Polyamide |
| Colour | Black |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,013 kg CO₂e / 1 Piece |

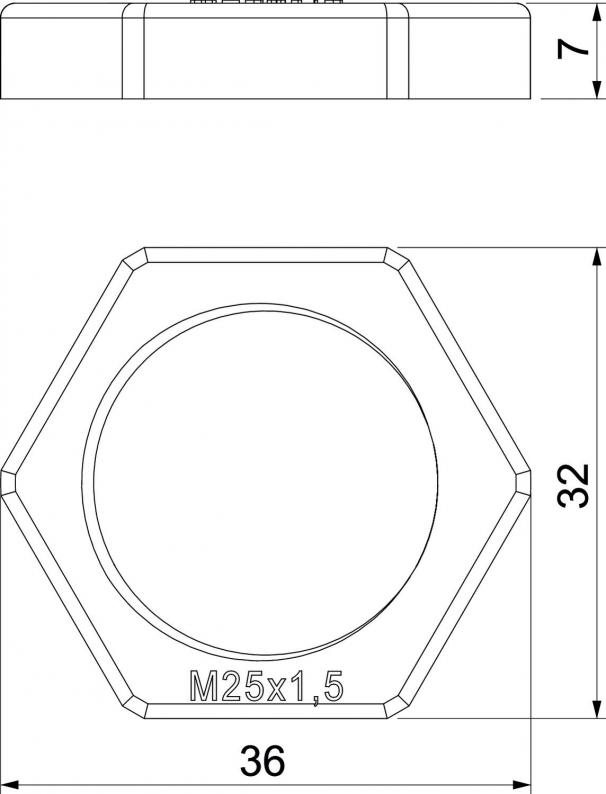

Dimensions
| Dimension L | 6,5 mm |
|---|---|
| Dimension E | 36 mm |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Thread
WAF
Item no.
116 M20 SW PA
M20 x 1,5
26
2049082
116 M25 SW PA
M25 x 1,5
32
2049090
116 M50 SW PA
M50 x 1,5
60
2049120
Thread
WAF
116 M20 SW PA
Item no.
2049082
Thread
M20 x 1,5
WAF
26
116 M25 SW PA
Item no.
2049090
Thread
M25 x 1,5
WAF
32
116 M50 SW PA
Item no.
2049120
Thread
M50 x 1,5
WAF
60
