Knock-in anchor
Type 910 SD 6X40
|Item no. 2351064
|EAN 4012195229513
Item no. / Type
Length
Diameter
Smallest selling unit: 100 piece
100piece
piece
Description
Knock-in anchor: steel, electrogalvanised and transparently passivated.
Technical data

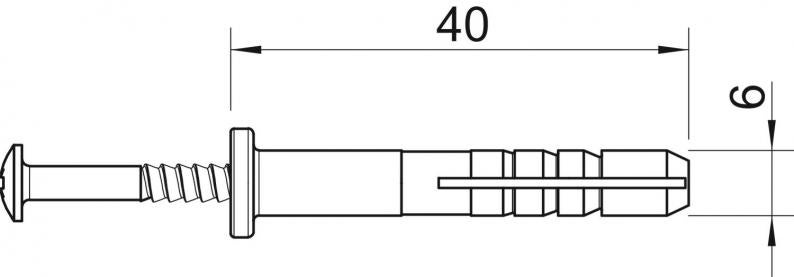

Dimensions
| Length | 40 mm |
|---|
Technical data
| Diameter | 6 mm |
|---|---|
| Halogen-free | yes |
| With bolts | yes |
| Screw system | Pozidrive PZ |
| Pull-out force | 260 N |
| Drill hole depth | 50 mm |
| Dimension | 6x40mm |
| Material | Polyamide |
| Colour | Light grey |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (3)
Tender specifications (1)
Variants
Type
Length
Diameter
Item no.
910 SD 6X35
35
6
2351056
910 SD 6X40
40
6
2351064
Length
910 SD 6X35
Item no.
2351056
Length
35
Diameter
6
910 SD 6X40
Item no.
2351064
Length
40
Diameter
6
