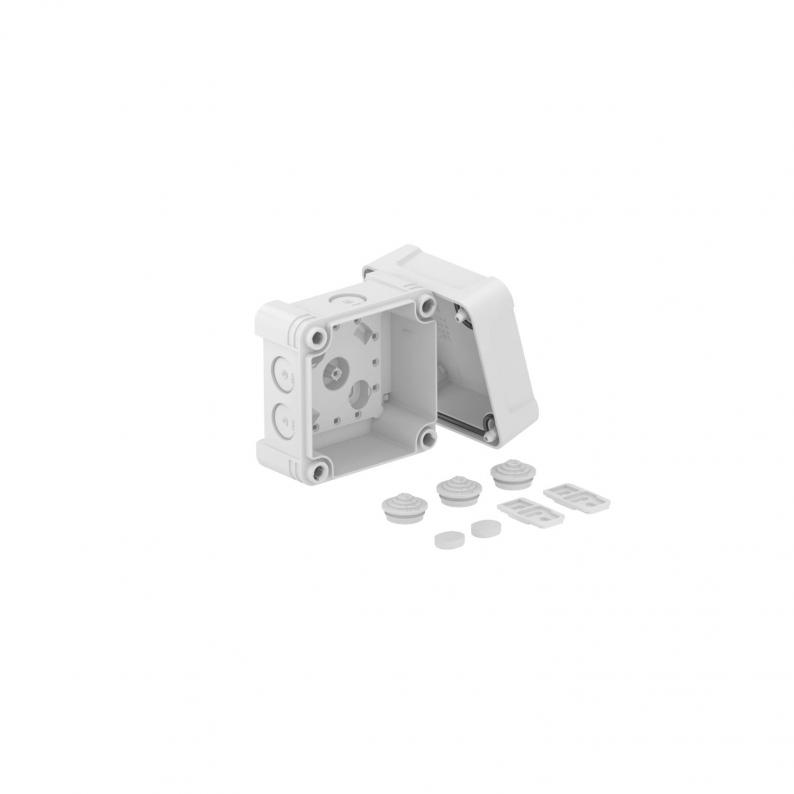

Junction box X 02

Junction box X 02

Type X02 LGR | Item no. 2005004 | EAN 4012196577378

Show all variants
Item no. / Type
Clear internal dimensions
Colour
No. of entries
7
Protection rating
IP67

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

Junction box for the connection of cables and lines indoors and in outdoor areas. Square design with knock-out entries. Suitable for wall and ceiling mounting with the option to fasten outside, inside or to mount via the corner domes. Particularly impact resistant with IK09. Cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.

Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK09 according to DIN EN 50102. Protection rating IP67 according to DIN EN 60529.


  • ENEC Austria
  • Flame resistant 650 °C
  • UV-resistant
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 67
  • IK Code 09
  • M20 entry
  • 7 cable entries
  • Nominal cross-section 2.5 mm²
  • Nominal voltage 750 V
  • CO₂ footprint (PCF)

Technical data

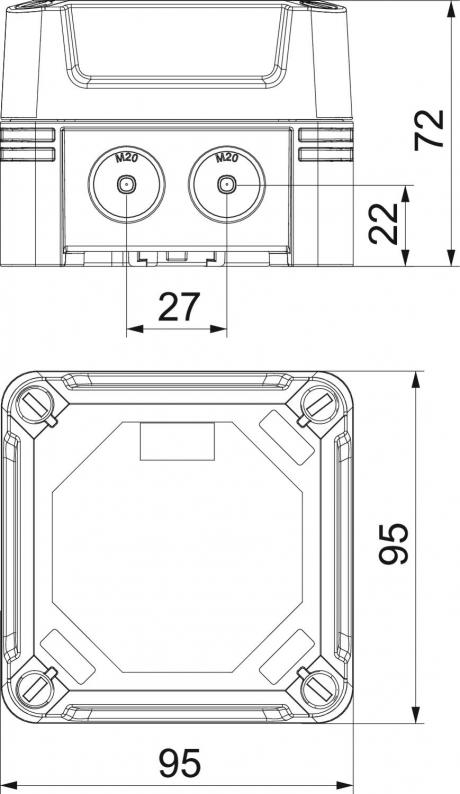

Dimensions

Length95 mm
Width95 mm
Height72 mm
Clear internal dimensions85x85x57 mm

Technical data

Impact-resistantyes
Halogen-freeyes
Fibre-glass reinforcedyes
No. of entries7
Entry from rearno
Transparent lidno
Protection ratingIP67
Nominal voltage750 V
Expandableyes
with lidyes
Sealableyes
Type of entryCuttable stepped membrane
Measured insulation voltage Vi750 V
Explosion-tested versionno
Type of housing penetrationPre-marking
With screeningno
Weatherproofyes
Protection rating IK codeIK09
Max. Conductor cross-section2,5 mm²
Nominal cross-section, max.2,5 mm²
Nominal cross-section, min.1 mm²
ShapeSquare
EquipmentWithout
CoverNot transparent
Cover fasteningScrewed
Mounting typeWall/ceiling mounting
Entries<TEXT><P>7 x Ø20</P></TEXT>
Permitted temperature range, max.60 °C
Permitted temperature range, min.-5 °C
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Dimension95x95x72
MaterialPolycarbonate
ColourLight grey; RAL 7035
CO2 Footprint (GWP) Cradle-to-Gate0,7286 kg CO₂e / 1 Piece
