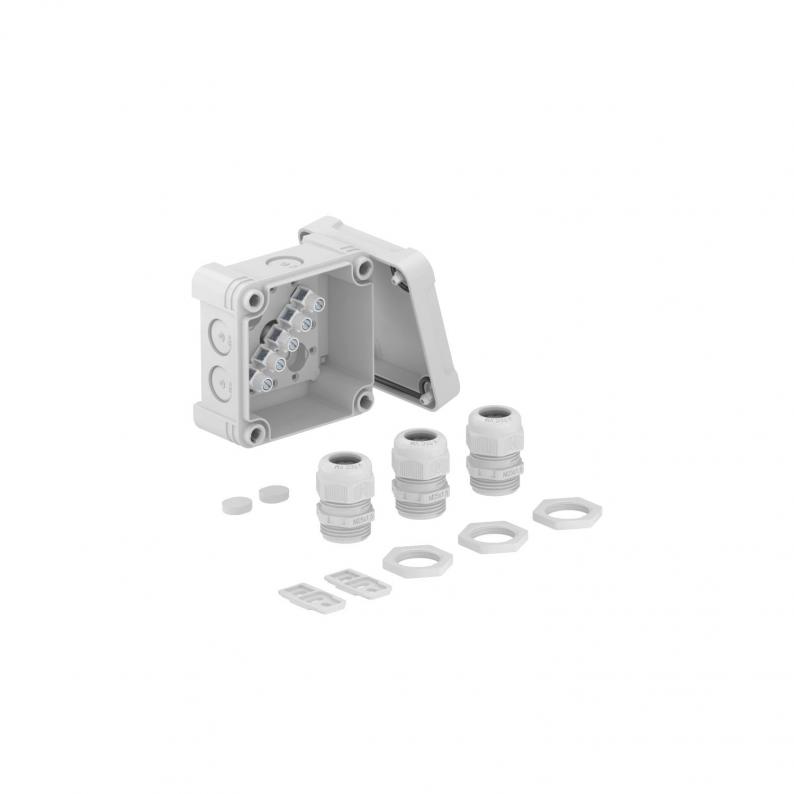

Junction box X 01 with cable gland and terminal strip

Junction box X 01 with cable gland and terminal strip

Type X01 T G M20 LGR | Item no. 2005220 | EAN 4012196584499

Show all variants
Item no. / Type
2005220 / X01 T G M20 LGR
No. of entries
7
Protection rating
IP67
Colour
Light grey; RAL 7035

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

Junction box with terminal strip for the connection of cables and lines indoors and in outdoor areas. Square design with knock-out entries. Suitable for wall and ceiling mounting with the option to fasten outside, inside or to mount via the corner domes. Particularly impact resistant with IK09. Cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.

Including terminal strip, 3 cable glands V-TEC M20 and 3 locknuts.

Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK09 according to DIN EN 50102. Protection rating IP67 according to DIN EN 60529.


  • ENEC Austria
  • Flame resistant 650 °C
  • UV-resistant
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 67
  • IK Code 09
  • M20 entry
  • 7 cable entries
  • Nominal cross-section 1.5 mm²
  • Nominal voltage 750 V
  • CO₂ footprint (PCF)

Technical data

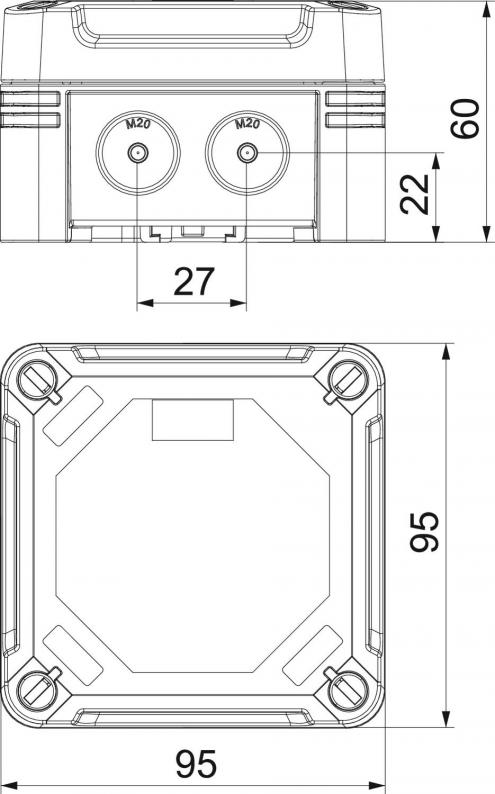

Dimensions

Length95 mm
Width95 mm
Height60 mm
Clear internal dimensions85x85x45 mm

Technical data

Impact-resistantyes
Halogen-freeyes
Fibre-glass reinforcedyes
No. of entries7
Entry from rearno
Transparent lidno
Protection ratingIP67
Nominal voltage750 V
Expandableyes
with lidyes
Sealableyes
Type of entryGland
Measured insulation voltage Vi750 V
Explosion-tested versionno
Type of housing penetrationPre-marking
With screeningno
Weatherproofyes
Protection rating IK codeIK09
Max. Conductor cross-section1,5 mm²
Nominal cross-section, max.1,5 mm²
Nominal cross-section, min.0,8 mm²
ShapeSquare
EquipmentTerminal
CoverNot transparent
Cover fasteningScrewed
Mounting typeWall/ceiling mounting
Entries<TEXT><P>7 x Ø20</P></TEXT>
Permitted temperature range, max.60 °C
Permitted temperature range, min.-5 °C
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Dimension95x95x60
MaterialPolycarbonate
ColourLight grey; RAL 7035
CO2 Footprint (GWP) Cradle-to-Gate0,9049 kg CO₂e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (3)
Certificates (1)
Instructions and Aid (2)
Product images (2)
Tender specifications (2)

Variants

X01 T G M20 LGR
Item no.
2005220
Clear internal dimensions
85x85x45
No. of entries
7
Protection rating
IP67
Colour
Light grey; RAL 7035
