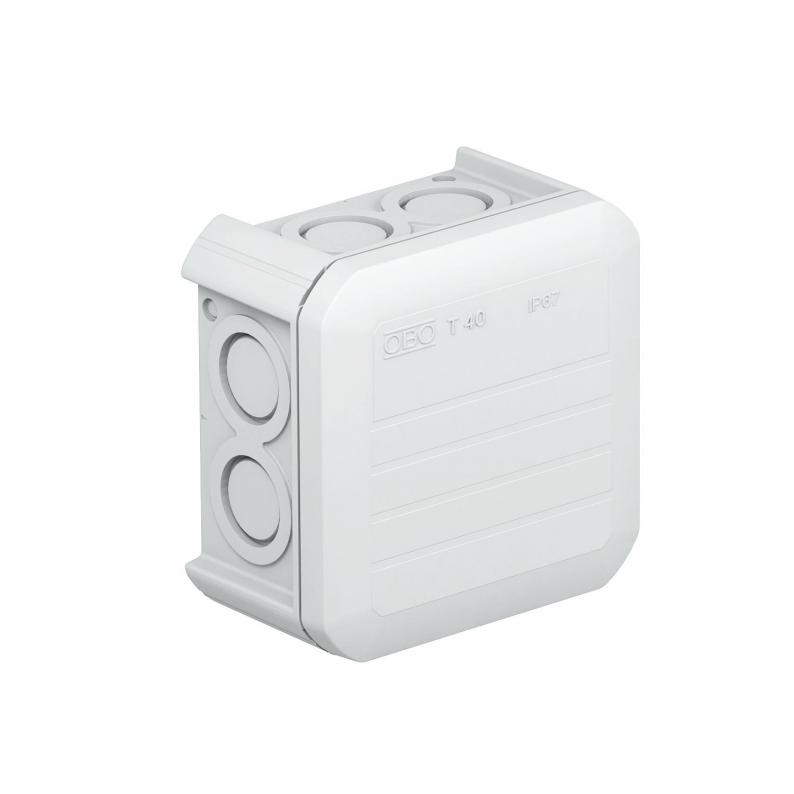

Junction box T40 with pre-marking, closed

Junction box T40 with pre-marking, closed

Type T 40 M20 | Item no. 2007900 | EAN 4012195885375

Show all variants
Item no. / Type
2007900 / T 40 M20
No. of entries
7
Protection rating
IP67
Colour
Light grey; RAL 7035

Smallest selling unit: 5 piece

DescriptionTechnical dataDownloadsVariants

Description

Junction box for the connection of cables and lines indoors and in protected outdoor areas. Square design with knock-out entries to the sides and knock-out entries in the bottom. Suitable for wall and ceiling mounting and on mounting panels. With the option to fasten inside and to mount via the corner domes. With fixed clamping cover. Made from halogen-free and UV-resistant materials. Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK07 according to DIN EN 50102.
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Nominal voltage 500 V
  • Protection rating IP 67
  • M20 entry
  • IK Code 07
  • Nominal cross-section 4 mm²
  • 7 cable entries
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

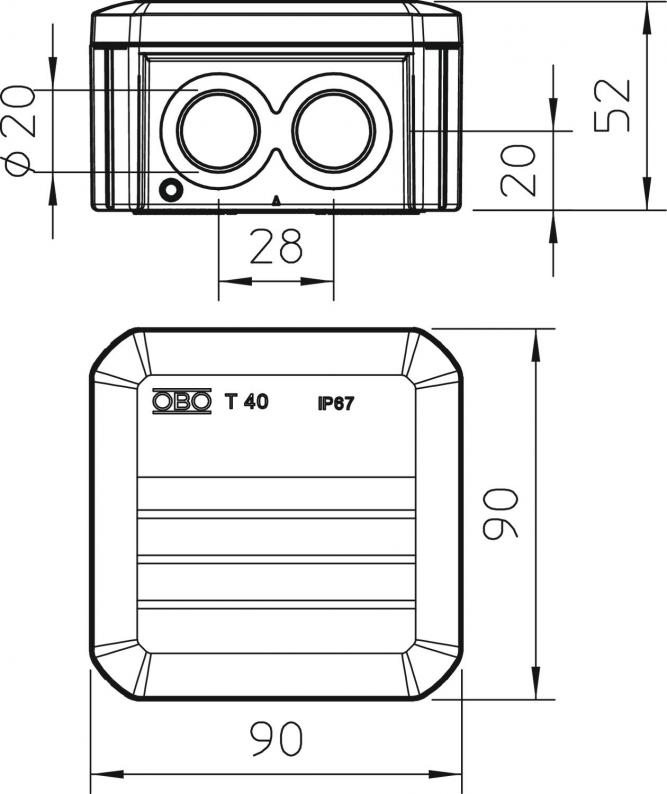

Dimensions

Length90 mm
Width90 mm
Height52 mm
Clear internal dimensions77x77x46 mm

Technical data

Type of entryPlug-in seal
Halogen-freeyes
Fibre-glass reinforcedno
No. of entries7
Entry from rearyes
Transparent lidno
Protection ratingIP67
Nominal voltage500 V
Expandableyes
with lidyes
Sealableyes
Type of entryGland
For Ex zoneWithout
Measured insulation voltage Vi500 V
Maintain electrical functionsWithout
Explosion-tested versionno
Type of housing penetrationPre-marking
With screeningno
Weatherproofno
Protection rating IK codeIK07.
For Ex zone gasWithout
For Ex zone dustWithout
Nominal cross-section, min.4 mm²
ShapeSquare
EquipmentWithout
CoverNot transparent
Cover fasteningLocking
Mounting typeWall/ceiling mounting
Entries<TEXT><P>7 x Ø20</P></TEXT>
Permitted temperature range, max.60 °C
Permitted temperature range, min.-5 °C
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Dimension90x90x52
MaterialPolypropylene
ColourLight grey; RAL 7035
CO2 Footprint (GWP) Cradle-to-Gate0,2234 kg CO₂e / 1 Piece
