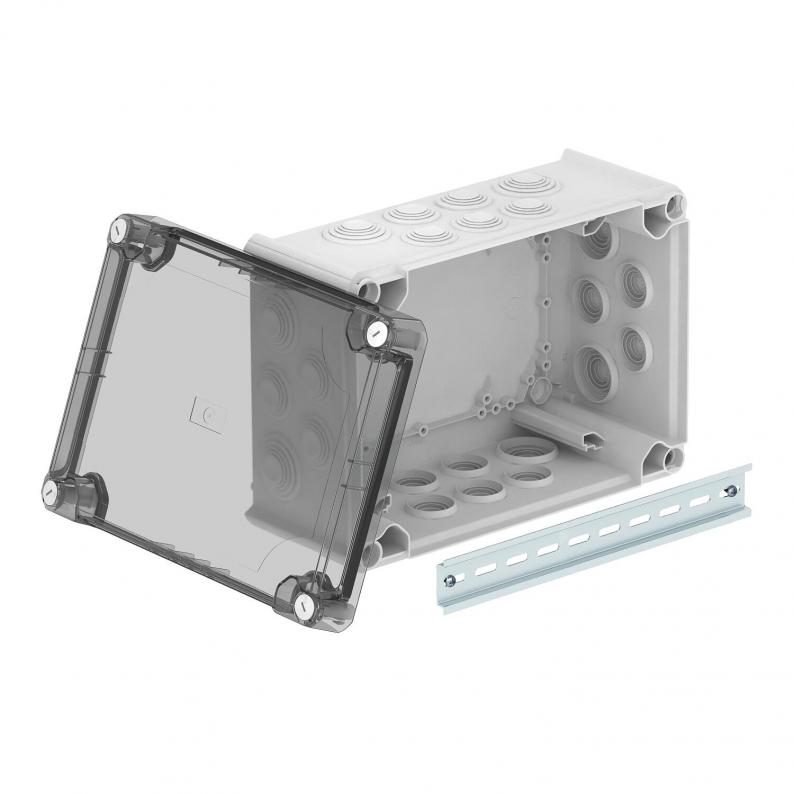

Junction box T350, with plug-in seal, transparent elevated cover

Junction box T350, with plug-in seal, transparent elevated cover

Type T 350 HD TR | Item no. 2007758 | EAN 4012195985976

Show all variants
Item no. / Type
2007758 / T 350 HD TR
No. of entries
24
Protection rating
IP66
Colour
Light grey; RAL 7035

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

Junction box for the connection of cables indoors and in protected outdoor areas. Rectangular design with plug-in seals. Suitable for wall and ceiling mounting, on mounting panels and threads in the floor. With the option of fastening inside and to mount via the corner domes. High, transparent cover with quick lock, sealable. Made from halogen-free, UV-resistant materials.

With hat profile rail.

Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695/2/11, test temperature 650°C. Impact resistance IK05 according to DIN EN 50102.
Clear internal dimensions: 267x182x127 mm
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 66
  • M32 entry
  • M40 entry
  • 24 cable entries
  • Nominal voltage 500 V
  • Nominal cross-section 35 mm²
  • gas-/battery-actuated setting tool
  • IK Code 05
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length285 mm
Width201 mm
Height137 mm
Clear internal dimensions267x182x127 mm

Technical data

Type of entryPlug-in seal
Halogen-freeyes
Fibre-glass reinforcedyes
No. of entries24
Entry from rearyes
Transparent lidno
Protection ratingIP66
Nominal voltage500 V
Expandableyes
with lidyes
Sealableyes
Type of entryCable
For Ex zoneWithout
Measured insulation voltage Vi500 V
Maintain electrical functionsWithout
Explosion-tested versionno
Type of housing penetrationMiscellaneous
With screeningno
Weatherproofno
Protection rating IK codeIK05.
For Ex zone gasWithout
For Ex zone dustWithout
ShapeRectangular
EquipmentWithout
CoverTransparent
Cover fasteningScrewed
Mounting typeWall/ceiling mounting
Entries<TEXT><P>16xM32</P><P>8xM40</P></TEXT>
Permitted temperature range, max.60 °C
Permitted temperature range, min.-5 °C
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Dimension285x201x139
MaterialPolypropylene / polycarbonate
ColourLight grey; RAL 7035
CO2 Footprint (GWP) Cradle-to-Gate3,2649 kg CO₂e / 1 Piece
